| Prod Model: |

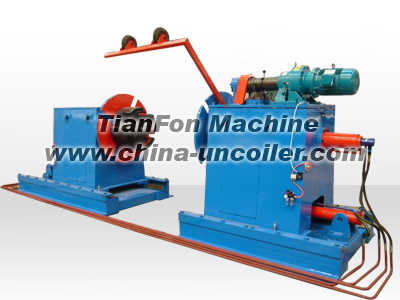

TF-8T Hydraulic Double cone top uncoiler |
Product Description
Used for the coil support and release and support the whole process. The uncoiler body is welded by section steel and steel plate for the double cabinet. Hydraulic double cone top structure, put the coil tightly against the double cone head, by hydraulic cylinder mobile activities end cone head, lock in top tight position Motor drive cone head spin, active feeding, can also be passive feeding, the system with force driving and damping also include the loading car.
Applicable scope, technical parameters:
Inner diameter of coil: φ 508-610mm
Outer diameter of coil: φ 1800mm
Load capacity: 8T
Width of coil: ≤ 1500mm
