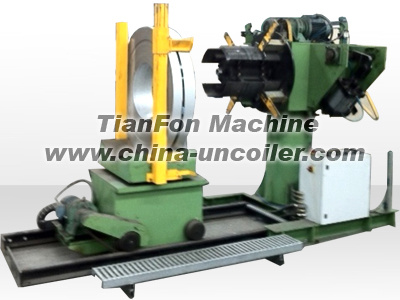

Used for the coil support and release, the uncoiler body is welded by section steel and steel plate, single arm structure, motor reducer drive the uncoiler, hydraulic drive wedge tight the inner wall of coil. The uncoiler with the clamp arm and outer block set prevent the coil loose, reasonable structure, convenient operation, reduce the labor intensity, Photoelectric device monitor the position of coil loop, A high degree of automation and can be select the coiler car.
Applicable scope, technical parameters
Inner diameter of coil: φ 508mm
Outer diameter of coil: φ 1200mm
Width of coil: ≤ 1000mm
Load capacity: ≤ 3T/5T
Attach with cooling equipment by air.
Complete with one set of rotating sensor for automatic production.
Complete with a remote control for loading coil.
Control box: All of push button switches pilot lamps, emergency stop switch and in computer system.
