SWC Series Cardan Shaft with Factory Price

SWC Series Cardan Shaft with Factory Price
Price: US $ 650-680/Piece
Trade Terms: FOB,CIF
Min Order: 1/Piece
Pay Type: T/T
Prod Model: SWC Series Cardan shaft
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
OEM/ODM: Available
Load: Drive Shaft
Stiffness & Flexibility: Stiffness / Rigid Axle
Axis Shape: Straight Shaft
Shaft Shape: Hollow Axis

Product Description

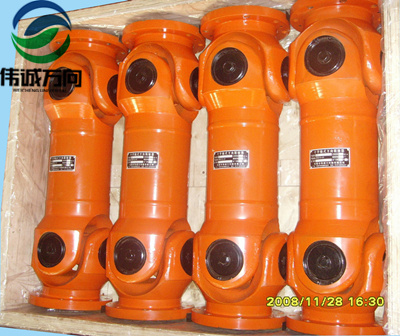

SWC Series-Medium-Duty Designs Cardan shaft

Designs

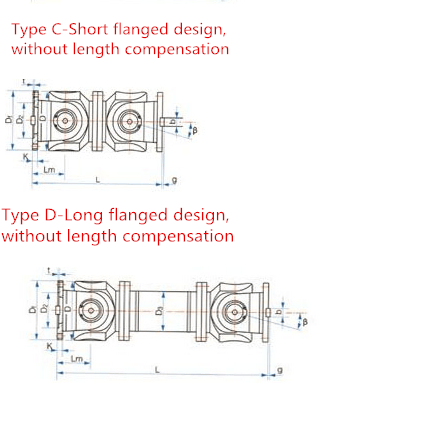

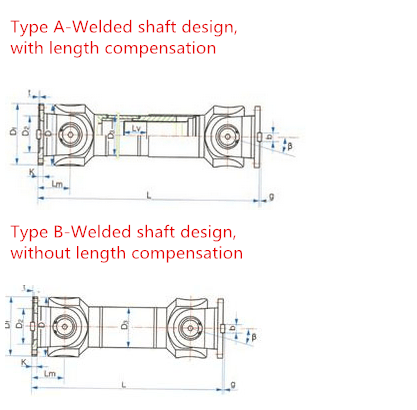

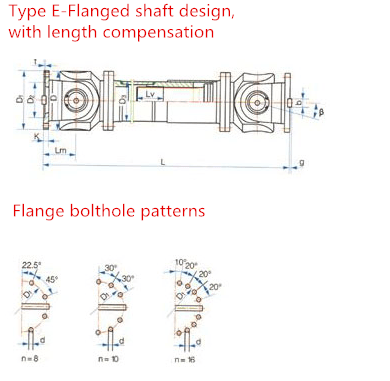

Data and Sizes of SWC Series Universal Joint Couplings
TypeDesign
Data
Item
SWC160SWC180SWC200SWC225SWC250SWC265SWC285SWC315SWC350SWC390SWC440SWC490SWC550SWC620
AL74080090010001060112012701390152015301690185020602280
LV100100120140140140140140150170190190240250
M(kg)65831151522192603114326108041122146821542830
BL48053059064073079084093010010101130134014001520
M(kg)446085110160180226320440590820109015602100
CL3804204805005606006407207828601040108012201360
M(kg)3548669013016018927035551078097013301865
DL520580620690760810860970103011201230136015501720
M(kg)486590120173220250355485665920124017652390
EL80085094010501120118013201440155017101880205023102540
LV100100120140140140140140150170190190240250
M(kg)70921261652382803404726608861230162523683135

Tn(kN·m)1622.431.5406380901251802503555007101000

TF(kN·m)811.2162031.540456390125180250355500

Β(°)1515151515151515151515151515

D160180200225250265285315350390440490550620

Df1601802002252502652853153503690440490550620

D1137155170196218233245280310345390435492555

D2(H9)100105120135150160170185210235255275320380

D3108114140159168180194219245273299325402426

Lm95105110125140150160180195215260270305340

K1617182025252732354042475055

T455566788810121212

N888888810101016161616

D1517171719192123232528313138

B202432324040404050708090100100

G6.07.09.09.012.512.512.515.016.018.020.022.522.525

MI(Kg)2.5733.853.855.1766.758.2510.61318.5023.7529.1238.08

SizeM14M16M16M16M18M18M20M22M22M24M27M30M30M36

Tightening torque(Nm)1802702702703723725267107109061340182018203170
1. Notations:
L=Standard length, or compressed length for designs with length compensation;
LV=Length compensation;
M=Weight;
Tn=Nominal torque(Yield torque 50% over Tn);
TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strength
Under reversing loads;
β=Maximum deflection angle;
MI=weight per 100mm tube
2. Millimeters are used as measurement units except where noted;
3. Please consult us for customizations regarding length, length compensation and
Flange connections.
(DIN or SAT etc. )

Wuxi Wei Cheng driveshaft Co., Ltd. Has been focused on the research and development, production and sales of the universal shaft 15 years. Annual production of 15000 sets of universal shaft.

Company independent research and development of light, medium, short, heavy universal shaft are to achieve the leading domestic level, the product is not only supporting the domestic large and medium-sized enterprises, but also exported to India, Vietnam, Laos, Ukraine, Russia, Germany, the United Kingdom and other countries.

In the fifteen years, the company has accumulated rich experience, learning foreign advanced technology, and to absorb and use, the universal shaft for many times to improve, so as to improve the structure, performance is significantly improved. Firm belief: "innovation, optimize the structure, persevere" creating a high quality universal shaft excellent production enterprises. We always adhere to the quality of ISO9001 system management and control quality, from the details of the process, and to achieve processing equipment, special machine, CNC product quality is rapidly increased, not only won the majority of customers reputation, but also get peer recognition.

We continue to strive for: "to create the greatest value for customers, to build the best platform for employees", we must realize the mutual benefit and win-win between customers and enterprises.
