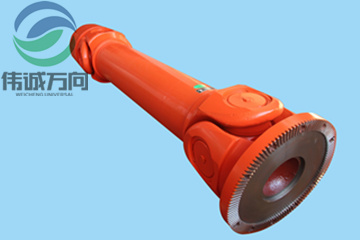

Swcz Series-Heavy-Duty Designs Cardan Shaft
| Price: |
US $ 1650-2800/Piece |
| Trade Terms: |
FOB |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
SWCZ Series-Heavy-Duty Designs Cardan shaftDesigns

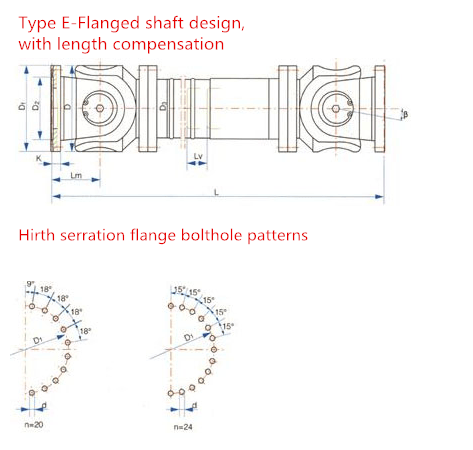

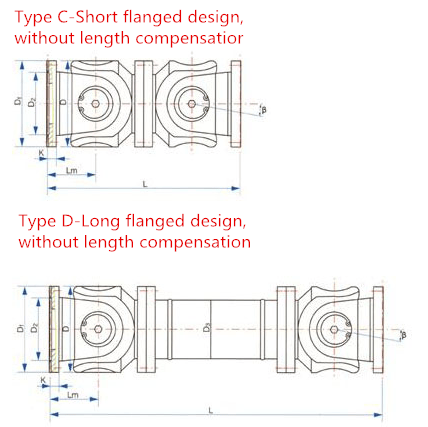

Data and Size of SWCZ Series Universal Joint Couplings| Type | Design
Data
Item | SWCZ
680 | SWCZ
700 | SWCZ
750 | SWCZ
780 | SWCZ
800 | SWCZ
840 | SWCZ
900 | SWCZ
920 | SWCZ
1000 | SWCZ
1050 | SWCZ
1100 | SWCZ
1200 |
| C | L | 1540 | 1600 | 1840 | 1920 | 1920 | 2120 | 2280 | 2280 | 2380 | 2480 | 2500 | 2720 |
| m(kg) | 3150 | 3450 | 4300 | 4680 | 5050 | 6400 | 8420 | 8950 | 10600 | 12100 | 13500 | 16900 |
| D | L | 1940 | 2100 | 2400 | 2500 | 2500 | 2680 | 2950 | 2950 | 3130 | 3200 | 3300 | 3570 |
| m(kg) | 3220 | 3530 | 4500 | 5400 | 5800 | 7470 | 9980 | 10500 | 12300 | 14500 | 15800 | 19500 |
| E | L | 3230 | 3460 | 3620 | 4000 | 4000 | 4250 | 4580 | 4850 | 4770 | 4950 | 5100 | 5660 |
| LV | 250 | 250 | 250 | 250 | 250 | 250 | 300 | 300 | 300 | 300 | 300 | 300 |
| m(kg) | 4880 | 5400 | 8000 | 8450 | 9070 | 11800 | 15900 | 16500 | 19900 | 22000 | 27500 | 34800 |
| Tn(N·m) | 1640 | 1750 | 2250 | 2500 | 2670 | 3100 | 3800 | 4050 | 5200 | 6500 | 6900 | 9000 |
| Tf(N·m) | 980 | 1050 | 1350 | 1500 | 1600 | 1860 | 2280 | 2430 | 3120 | 3900 | 4140 | 5400 |
| β(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| D | 680 | 700 | 750 | 780 | 800 | 840 | 900 | 920 | 1000 | 1060 | 1100 | 1200 |
| Df | 680 | 700 | 750 | 780 | 800 | 840 | 900 | 920 | 1000 | 1060 | 1100 | 1200 |
| D1 | 635 | 635 | 695 | 725 | 745 | 775 | 935 | 855 | 915 | 920 | 1015 | 1100 |
| D2(H9) | 550 | 570 | 610 | 640 | 660 | 710 | 740 | 760 | 840 | 900 | 920 | 1000 |
| D3 | 560 | 560 | 620 | 660 | 660 | 660 | 750 | 750 | 790 | 800 | 850 | 900 |
| Lm | 385 | 400 | 480 | 480 | 480 | 530 | 570 | 570 | 595 | 620 | 625 | 680 |
| k | 70 | 70 | 95 | 95 | 95 | 110 | 120 | 120 | 130 | 130 | 130 | 130 |
| n | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 24 | 20 | 20 | 20 |
| d | 26 | 26 | 31 | 31 | 36 | 38 | 38 | 38 | 50 | 45 | 50 | 58 |
| Flange bolt | M24 | M24 | M30 | M30 | M30 | M36 | M36 | M36 | M48 | M42 | M48 | M56 |
1. Notations: L=Standard length, or compressed length for designs with length compensation; LV=Length compensation; M=Weight; Tn=Nominal torque(Yield torque 50% over Tn); TF=Fatigue torque, I. E. Permissible torque as determined according to the fatigue strengthUnder reversing loads; β=Maximum deflection angle; MI=weight per 100mm tube2. Millimeters are used as measurement units except where noted; 3. Please consult us for customizations regarding length, length compensation andFlange connections. (DIN or SAT etc. )
