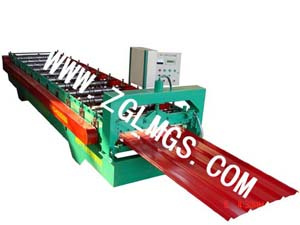

Colored Steel Sheet Roll Fomring Machine LM-840
Producing line
Decoiling---Feeding material---molding---cutting---products receiving
Function and feature
This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products are used as the roof tile and wall panel outside of building, as well as decorative sheet and ceiling board inside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; You can set several different data on the computer control cabinet according to your own need. After pressing the button -Confirm, the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install. The product conforms to National Steel Construction Building Standard.
Feature of this producing line:
Low cost
High efficiency
Reliable working
Low energy consumption
It has been honored with ISO 9001: 2000 certification.
It had got the eighth "Consumer-trusted Enterprise in Cangzhou City"
It had got the ninth "Consumer-trusted Enterprise in Hebei Province"
3.15 quality, Credibility, Satisfied with the good faith commitment to the consumer services units.
Material: Galvanized sheet or colored armor plate
Equipment operation: Automatically
Voltage: AC380/50-60Hz
Number of roller: 11-17
Applied slab thickness: 0.3mm-1.0mm
Material width: 1000mm
Formed width: 860mm
Productivity: 15mm/min
Weight: 5000kg
Power: 4kw+3kw
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
