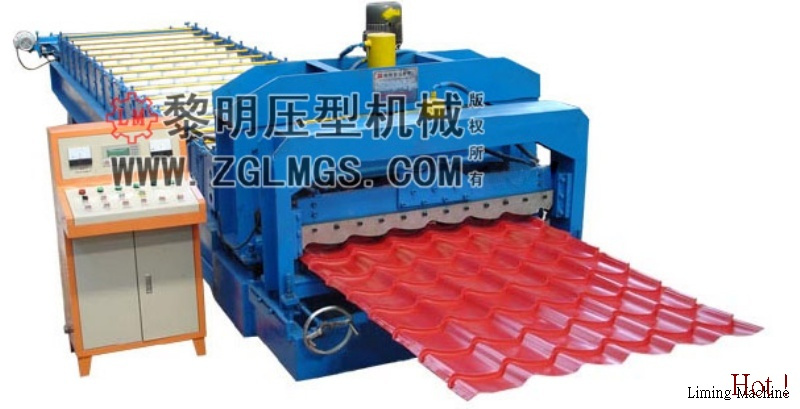

LM-1100 Glazed Steel Tile Stamping Machine
Technical parameter:
1) Material spec: Colored steel sheet, galvanized steel sheet
2) Thickness of coil sheet: 0.4 - 0.8mm
3) Main motor power: 7.5kW
4) Forming speed: 7~15m/min
5) Hydraulic station power: 3kW
6) Quantity of stands: About 15 groups
7) Hydraulic pressure: 10 - 12Mpa
8) Controlling system: PLC
9) Index error of length: 10m - 2mm
10) Total weight: About 6, 500kg
11) Voltage: 380V 3 phase 50Hz or at buyer's requirement
Material of main equipment:
1) Roller material: High grade No. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
2) Active shaft material: High grade No. 45 carbon wrought steel at diameter 75mm
3) Cutter blade: Cr12 mould steel with quenched treatment
4)Frequency converter,
5)PLC: Computer adopt PLC
6)Computer operating board adopt OP320A, China.
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
