Steel Scaffolding Planks Board Roll Forming Line Manifacturer for Malaysis

Name: Steel Scaffolding Planks Board Roll Forming Line Manifacturer for Malaysis
Brand: china-castingforging.com
SKU: 618793244
Availability: InStock
Rating: 4.4 (43 reviews)

Price:	US $ 150000set
Trade Terms:	FOB,CFR,CIF
Min Order:	1set
Pay Type:	T/T

Contact Supplier

Jiangyin BOSJ Science & Technology Co., Ltd.

Showroom Product Company Profile

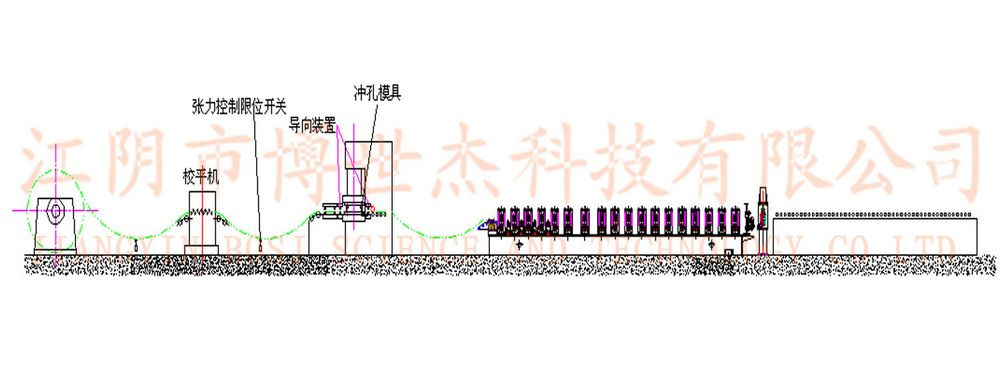

1 Processing
De-coiler----Leveler----(limit switch)----Guider,punching----Forming----Cutting----Collection table

2 Structure of Equipment

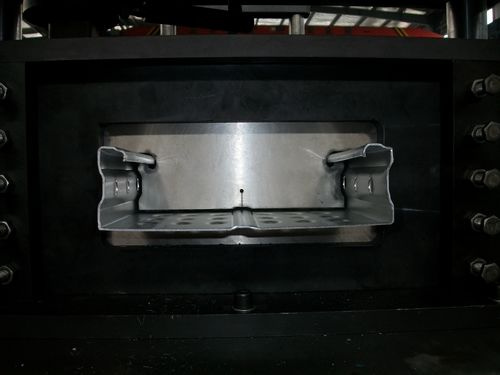

It's combined with leveler,feeder/punching,forming,cutting and other technology.
The equipment is consisted of decoiler,punching,forming(welding),cutting and electrical system

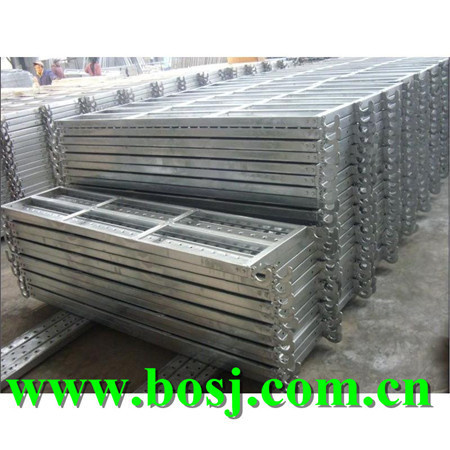

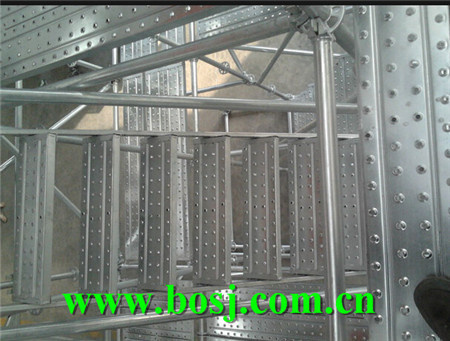

Details of the Scaffolding Plank

Size (mm)	Weight (kg/pc)	Size (mm)	Weight (kg/pc)
WALK BOARDS		CATWALK
165 x 50 x 1.2 x 4000	12.5	500 x 50 x 1.2 x 1829	15.50
165 x 50 x 1.2 x 3000	9.5	480 x 45 x 1.2 x 1829	13.50
165 x 50 x 1.2 x 2000	6.38	450 x 45 x 1.2 x 1829	13.00
165 x 50 x 1.2 x 1000	3.3	450 x 38 x 1.2 x 1829	12.50
210 x 45 x 1.2 x 4000	13.60	420 x 45 x 1.2 x 1829	12.50
210 x 45 x 1.2 x 3000	10.26	500 x 50 x 1.2 x 1219	11.00
210 x 45 x 1.2 x 2000	6.93	480 x 45 x 1.2 x 1219	10.00
210 x 45 x 1.2 x 1000	3.59	450 x 45 x 1.2 x 1219	9.50
240 x 45 x 1.2 x 4000	14.87	450 x 38 x 1.2 x 1219	9.00
240 x 45 x 1.2 x 3000	11.23	420 x 45 x 1.2 x 1219	9.00
240 x 45 x 1.2 x 2000	7.59	330 x 50 x 1.2 x 1829	11.50
240 x 45 x 1.2 x 1000	3.94	330 x 50 x 1.2 x 1219	8.50
250 x 50 x 1.2 x 4000	15.67
250 x 50 x 1.2 x 3000	11.84
250 x 50 x 1.2 x 2000	8.00
250 x 50 x 1.2 x 1000	4.15

3 Technical data:

No.	Item		Unit	Data	Remark
1	Raw material	Type		MS, galvanized sheet
		Strength of panel	Map	≥350
		Thickness of panel	mm	1.2~2.0
2	Size		mm	See figure
3	Speed		m/min	6~8
4	Material of roller			GCr15Hardening treatment
5	Drive type			Gear box
6	Total power		kw	About 45
7	Electrical system			PLC Inverter control
8	Contour dimension (LWH)		m	35X4X3.9

Prod Model:	BOSJ-F
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Control System:	PLC Control System
Roller Material:	Gcr 15
Making Machine:	Multifunctional
Forging Forming Method:	Mold Forging

Jiangyin BOSJ S & T Co., Ltd(BOSJ)is a professional manufacturer of roll forming machines.

-------Cable tray roll forming machine
-------Floor panel roll forming machine
-------C channel roll forming machine
-------C&Z shape purlin interexchangeable roll forming machine
-------C shape purlin roll forming machine
-------Z shape purlin roll forming machine
-------Electric cabinet frame roll forming machine
-------Storage rack roll forming machine
-------Highway guardrail roll forming machine
------Steel silo forming machine
------CNC plasma cutting machine
------Steel Coil double-Covering Line
As a leading producer of many types of roll forming machines in China, BOSJ has won worldwide reputation in this field. Our products have broad markets in Southeast Asia, India, North and South America, Western Asia, Russia and Australia. We guarantee first-rate after-sale service and product quality. Establishing abiding friendship with any customers interested in roll forming machines is our goal. Sincerely, we invite you to pay a visit to our company.

BOSJ provides technical service and supports covering the whole process of purchasing and of our machinery products to assure you satisfactory machinery, timely resolutions or problem Service and technology of BOSJ.

We have had great testimonials from our customers all over the world. "Continously improving our product & service quality" is our mission to bring success to us and our customer
