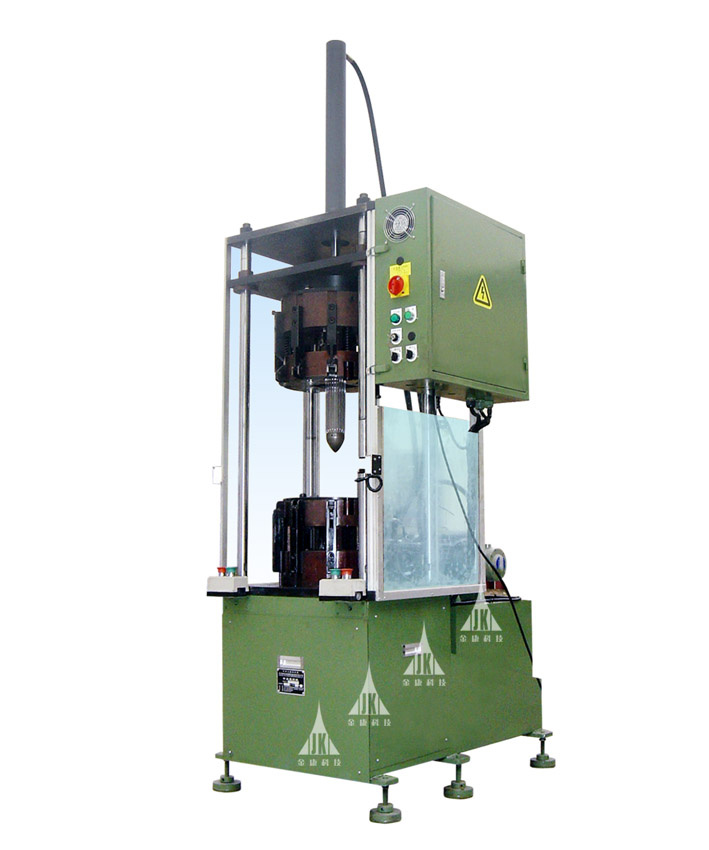

It's a kind of hydraulic equipment which can form the winding roughly to a required dimension by extrusion method.
Stator stack height: 20m-160mm
Max. Stator O. D.: 160mm
Stator I. D. Range: 30-120mm
Displacement of oil pump: 30F
Power supply: 380v/ 50Hz Three-phase four-wire
Power: 3.75Kw
Dimension(L*W*H): 630mm*1200mm*2400mm
Weight: About 1200Kg
Changzhou new district jinkang precision mechanism Co., Ltd. is a professional motor manufacturing equipment supplier since 1997.
It's qualified for designing and producing full production line (which starts from coil winding to final forming of a stator) for generators and AC motors such as: Fan motor, compression motor, pump motor, coil pipe motor, washing motor, air conditioner motor etc.
The following is our product range:
Coil winding machine
Insulation paper inserting machine
Coil inserting machine
Coil forming machine
Coil lacing machine
Rotor lathe finishing machine
Cutting machine ( slot insulation & wedge)
Inserter tooling
Wearing parts (blade, wedge guide, pusher, stripper etc.)
We are now looking forward to sincere cooperate with you to create a bright future.
