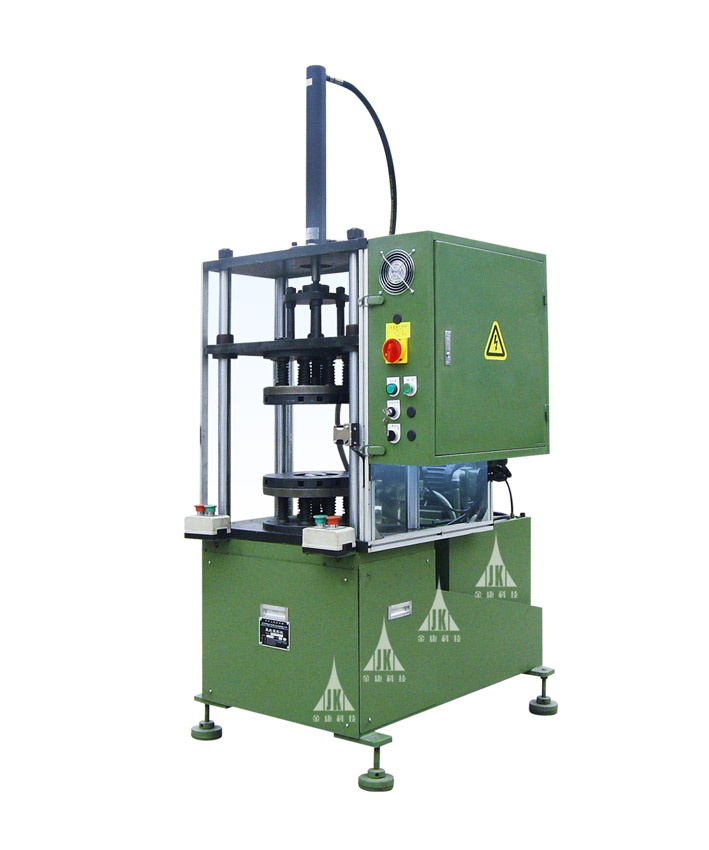

It's a kind of hydraulic equipment which can form the coil to a required dimension by extrusion method.
Technical Data:
Stator stack height: 10mm-120mm
Min inner diameter of stator: Φ 30mm- Φ 100mm
Max outer diameter of stator: Φ 180mm
Input: 380V /50Hz
Displacement of oil pump: 10ML/REV
Power: 1500W
Dimension: 1000mm * 620mm * 2200mm
Weight: About 700kg
Changzhou new district jinkang precision mechanism Co., Ltd. is a professional motor manufacturing equipment supplier since 1997.
It's qualified for designing and producing full production line (which starts from coil winding to final forming of a stator) for generators and AC motors such as: Fan motor, compression motor, pump motor, coil pipe motor, washing motor, air conditioner motor etc.
The following is our product range:
Coil winding machine
Insulation paper inserting machine
Coil inserting machine
Coil forming machine
Coil lacing machine
Rotor lathe finishing machine
Cutting machine ( slot insulation & wedge)
Inserter tooling
Wearing parts (blade, wedge guide, pusher, stripper etc.)
We are now looking forward to sincere cooperate with you to create a bright future.
