Specification and Capacity

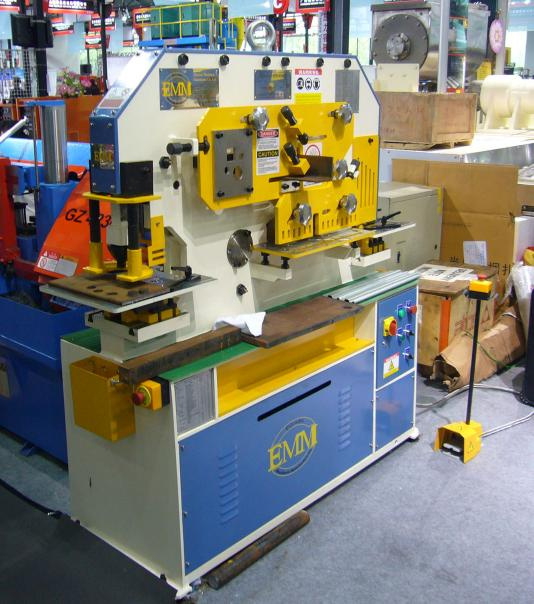

This kind of machine is the latest iron Workers in our country, which adopt four-stages hydraulic transmission through repeated beam movement swing The whole machine is reasonable structured, light, low noise and easy to operate.
The tool adopts whole-structure compact designing, setting four-stages. It is ideal equipment for cutting angle, round, flat bar, punching, joist, as well as channel, equipped with related stop device for cutting.
The fixing device can be adjusted by Helical Gear Transmission, simple and convenient.
|
Model |
Unit |
HIW-40 |
|
Working pressure |
KN |
400 |
|
Max. cutting thickness |
mm |
10 |
|
Max. cutting length |
mm |
300 |
|
Tensile strength of sheet metal |
N/mm2 |
≤ 450 |
|
Shear angle |
mm |
7 |
|
Stroke of ram |
mm |
32 |
|
Stroke times |
times/min |
10 |
|
Depth of throat |
mm |
175 |
|
Max. capacities |
mm |
26× 15 |
|
Main motor |
KW |
3 |
|
Length of machine tool |
mm |
1175 |
|
Width of machine tool |
Mm |
550 |
|
Height of machine tool |
Mm |
1590 |
|
Weight of machine tool |
kg |
800 |
