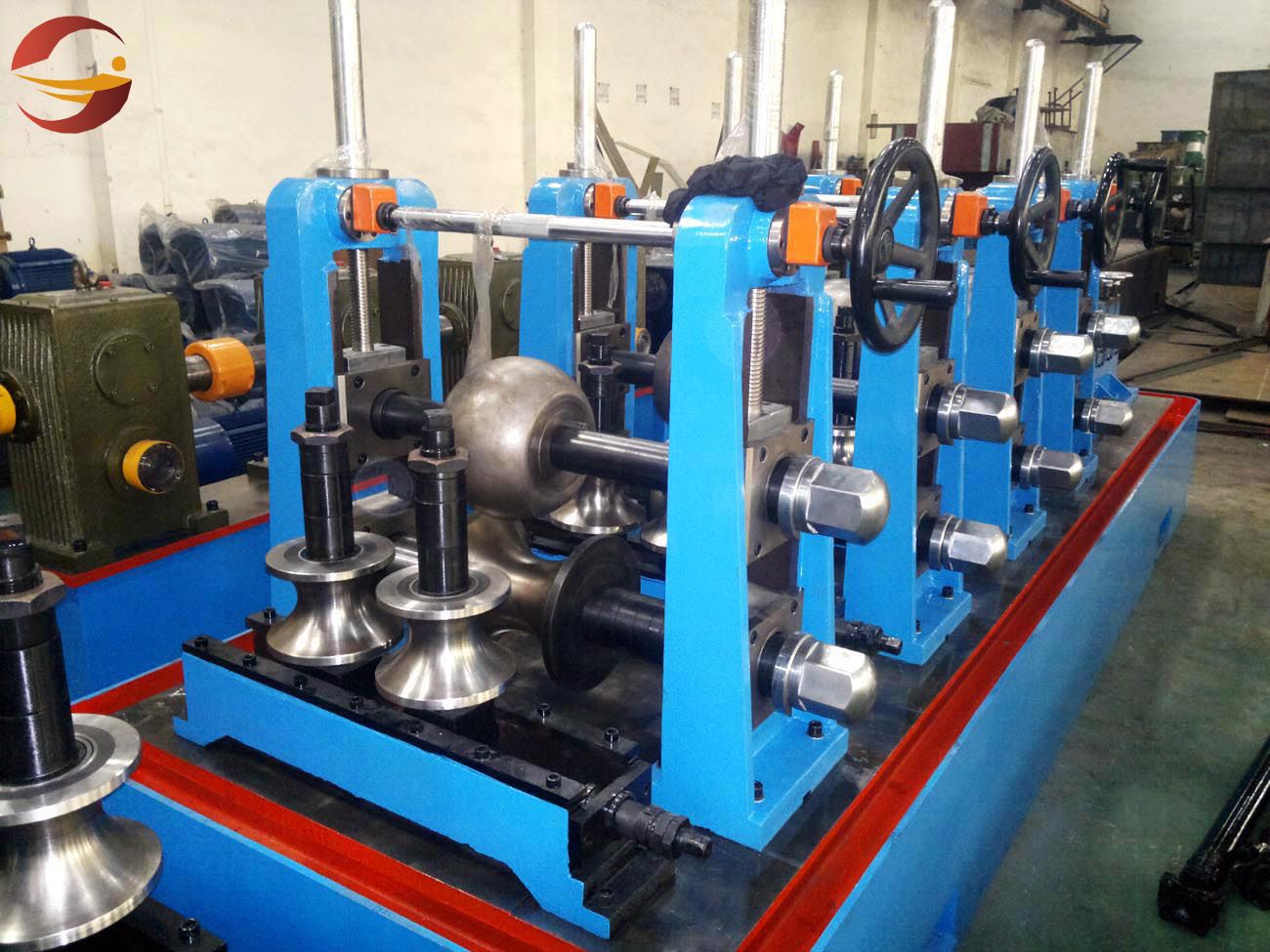

1. Description: Automatic stainless steel pipe welding machine, decorative stainless steel pipe making machine, tube forming machine.
2. Application: Mainly used for decoration, products, appliances stainless steel pipe and carbon steel (round tube, square tube, shaped tube) production.
3. Automated production process: The open book, play marks, forming, welding, grinding, sizing, straightening, fixed length, cut, splice and other continuous molding process.
4. Fine structure, easy operation, excellent products, made in Baiguan.
5. Machinery main components: Open book machine, forming welding machine, grinding machine, sizing machine, frame straightening, cutting machine, finished frame.
6. Certificate: ISO9001
7. Warranty: One year.
8. Packing: Standard export package, safe for container transportation.
9. After-sale Services:
Provide the relevant shipping charge information, take charge of loading and the relevant shipping procedure, focus on the safety of the goods and the shipping time.
Provide the technical documents about machinery installation, maintenance, operation and so on.
Provide the technical support about the machinery installation, maintenance, operation and so on.
Provide the equipment list of the main components.
Responsible for the equipment installation and commissioning guidance.
Provide one year warranty (man-made damage without insurance, the vulnerability of non-insurance).
Provide post-paid warranty service after shelf life.
Foshan charged affairs for the customers: Apply for the certificate, find the relevant products of this industry, find the master worker, provide the information we know of the relevant weld pipe industry.
Provide our customers with limited space for short-term storage of other company's products, provide charged affairs for express and shipping.
Model |
Horizontal axis diameter (mm) |
Vertical diameter (mm) |
Pipe
diameter
(mm) |
Pipe thickness (mm) |
Main motor power |
Mechanical assembly size
(Length X Width) |
|
BG-30 |
30 |
25 |
6-25 |
0.2-0.8 |
4KW |
19, 5m X 1.0m |
|
BG-S40 |
40 |
25 |
6-32 |
0.2-1.0 |
5.5KW |
20m X 1.0m |
|
BG-40 |
40 |
25 |
9-51 |
0.2-1.5 |
7.5KW |
21.5m X 1.1m |
|
BG-L40 |
40 |
25 |
12-64 |
0.3-2.0 |
11KW |
21.5m X 1.1m |
|
BG-50 |
50 |
30 |
25-76 |
0.3-2.0 |
11KW |
24m X 1.2m |
|
BG-60 |
60 |
40 |
38-114 |
0.4-2.5 |
15KW |
26m X 1.4m |
|
BG-80 |
80 |
50 |
76-168 |
1.0-3.5 |
18.5KW |
32m X 2.3m |
|
BG-100 |
100 |
60 |
114-219 |
1.0-4.0 |
22KW |
36m X 2.5m |
|
Heater plane |
30 |
20 |
5-16 |
0.2-1.0 |
4KW |
17m X 0.9m |
|
Machinery main components: open-book machine, forming welding machine, grinding machine, sizing machine, straightening frame, cutting machine, finished frame |
