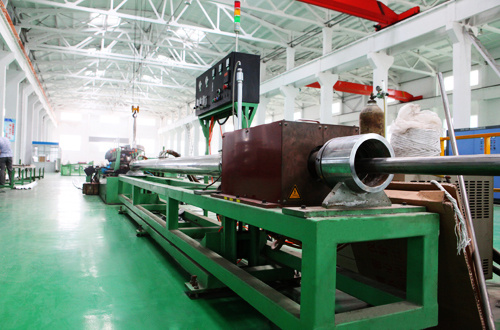

1. Online Bright Solid Melting and Annealing Equipment, Material Bright Annealing Furnace, heating treatment equipment
2. Application: Mainly used for industrial pipe, to make it bright and polished, also level the weld seam.
3. Advantage: Automatic control, Good quality with competitive price;
4. Quality: 100% brand new and according to the customers' requirements;
5. Thickness range: 0.5mm-4.5mm
6. Diameter of heating coil range: 55-145
7. Diameter range: 12-114
8. Introduction:
The development of stainless steel pipe, especially industrial stainless steel pipe, got the support from country industrial policy. But the solid melting treatment mostly uses online black solid melting and souring, or offline bright solid melting. One will bring environmental problem, the other one will increase the working process and cost. Now, online bright solid melting will solve these problems.
9. Components:
The power system, consisting of IGBT inverter m-frequency power transistor ark and groove road compensation capacitor; The bright solid melting system, consisting of induction heating coil, cooling water, gas protection device and infrared measuring instrument; The cooling system, consisting of water-water heat exchanger, external water circulation and cooling device; The welded pipe cleaning device and electric control system.
10. Feature:
Will the induction heating mode of stainless steel canal to melt temperature of heating for material 304 (10.4 degrees Celsius), and for the protection of hydrogen gas in sealing device for solid melts in the process, to improve the weld structure and eliminate stress, to enhance the corrosion resistance; Use hydrogen gas can be made for protection of solid melting processing becomes brightness and welded pipe cooling speed. Stainless steel welded pipe heat melt temperature to pick the cooling adopted after cooling mode, to keep the welded pipe light.
|
Model |
Diameter Range (mm) |
Thickness Range (mm) |
Power Range (KW) |
Diameter of Heating Coil Range |
The matched machine device |
|
YCGR32 |
12-38 |
0.5-3.0 |
60 |
55 |
GYHG40 |
|
YCGR63 |
32-63 |
0.6-3.5 |
80 |
60 |
GYHG50 |
|
YCGR114 |
63-114 |
1.0-4.5 |
160 |
145 |
GYHG60 |
Foshan Baiguan Science and Technology Co., Ltd, located in Foshan Shishan Industrial Park, is a whole-plant equipment manufacturer of the stainless steel tube mill, specialized in research, development, design, production, sales, and support services.
Our company has strong technical force and overall quality. We have a professional welded pipe R & D team, management team, and more than 50 capable technicians. Also, we established an advanced computer simulation laboratory and workshop in equipment development experiments.
We strictly carry out the ISO9001 international quality management system standard. After several years development and innovation, through the staff's pursuing and full use of modern management and advanced precision machinery processing equipment, we establish a complete operating system throughout home and abroad. Quality products and attentive service not only have won a large number of loyal customers for the company, but also achieved recognition from the industry and authorities.
Based on stainless steel welded pipe equipment, we created our brand of "BG" for a dozen specifications of products, including industrial pipe making machine, weld seam-inside leveling machine, bright annealing equipment, high frequency welding tube mill, stainless steel decoration pipe making machine, polishing machine, mold, embossing machine, milling machine etc.
To go with the development of the times, and to meet the diverse needs of customers, our company will go hand in hand with a innovation attitude. As customers continue to recognize, our products have been selling both at home and abroad.
Our company's corporate philosophy is " win by technology, strive for excellence". We forge ahead by working ways of "scientific, rigorous, innovative"; Hunt for the latest industry information with sharp market insights. We are LED by market demand. Customer-oriented is our core value. We are sure to provide our customers with quality products and first-class services.
We warmly welcome you to visit our company and negotiate win-win cooperation so as to create a better future!
Keyword: Tube Mill, Polishing Machine, Pipe Making Machine, Stainless Steel Pipe Machine
