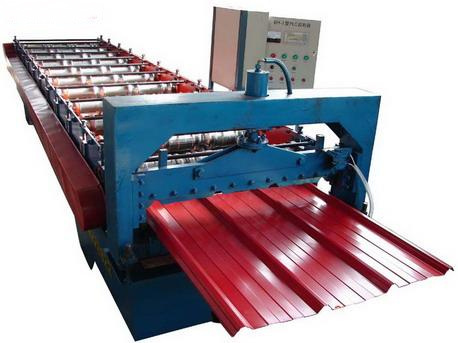

Roll Forming Machine Feature:
Roll Forming machine is Widely used as the roof of garden, factory, hotel, exhibition center and villa, etc
Roll Forming Machines components:
Roll forming machine Includes in hydraulic decoiler, sheet guiding equipment, roll forming system, pressing equipment, cutting equipment, hydraulic station, electric controlling system, supporter and safety cover.
|
Main power |
5.5KW |
|
Roll station |
Upper 18stations; Down 18 stations |
|
Size of roll forming machine |
About 9.4m*1.65m*1.2m |
|
Diameter of shaft |
76mm |
|
Thickness of formed steel |
0.3mm-0.8mm |
|
Width of raw material |
1250mm (can depend on client request) |
|
Material of the roller |
45#forge steel, machined with numerical control, polished and coated with chrome, surface with 0.05mm |
|
Hydraulic power |
4KW |
|
Computer adopt PLC |
Panasonic |
|
Computer operating board |
Touch screen |
|
Length tolerance |
+/-1.5mm |
|
Working speed |
12-30m/min(not including cutting) |
|
Hydraulic pressure |
12Mpa |
ZuoJiaYou international industrial Co., Ltd is the registered in the Hong Kong special administrative region. It is a comprehensive company which has invested into the import and export industry for the machinery industrial and other goods in domestic. Our company has strong economic foundation, strong network of relationships, perfect technology and personnel configuration. We have a very completely mechanical independently research and development system, and a service system for import and export.
We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.
"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements
Excellent service and high technology assist you to create a bright future.
