Widely used as the roof of garden, factory, hotel, exhibition center and villa, etc

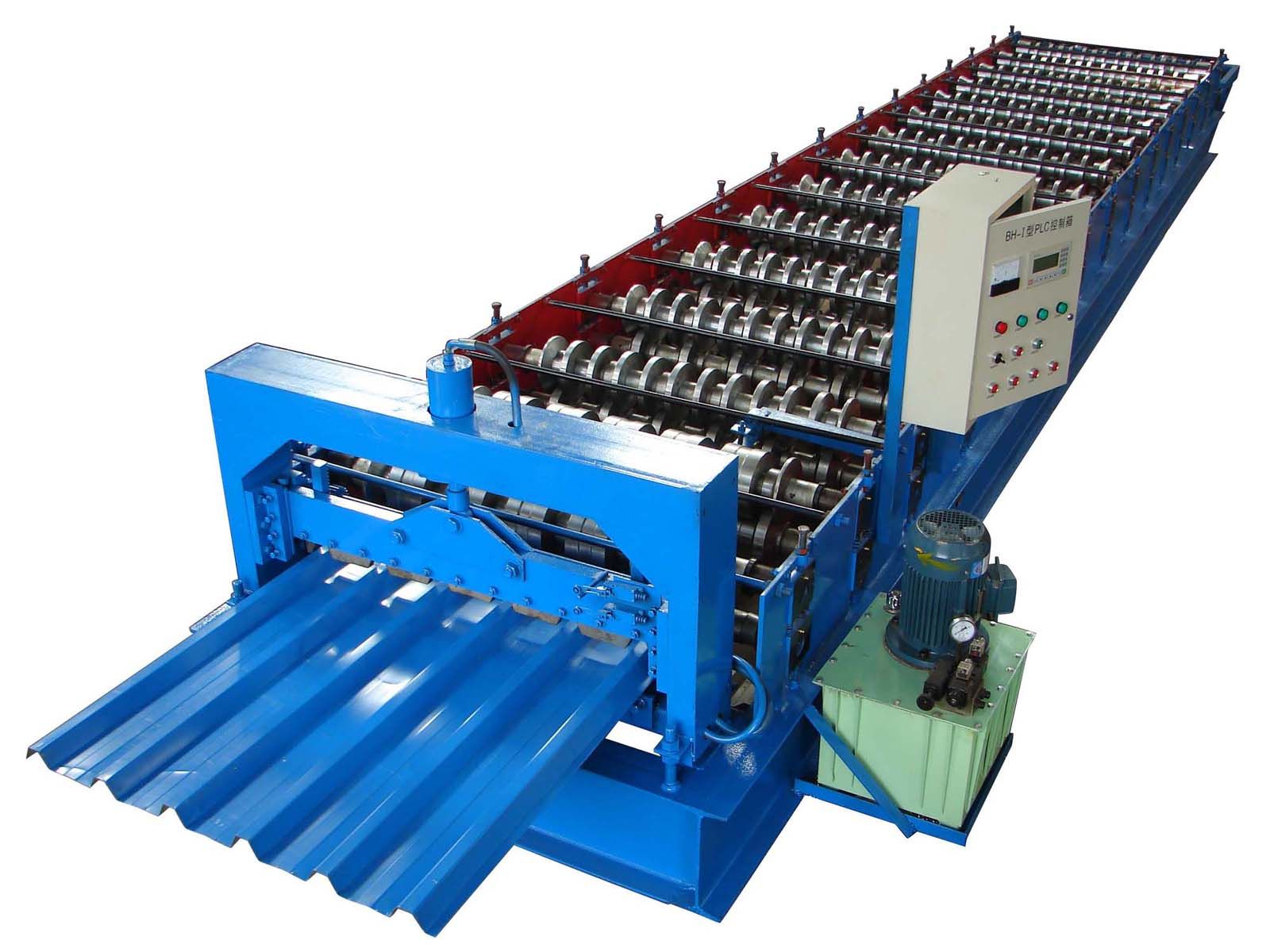

Machines components:
Includes in hydraulic decoiler, sheet guiding equipment, roll forming system, pressing equipment, cutting equipment, hydraulic station, electric controlling system, supporter and safety cover.
|
Suitable material |
Color steel sheet |
|
Thickness of raw material |
0.5_0.6mm |
|
Yield strength of material |
235Mpa |
|
Coil Width |
1000mm |
|
Working speed |
5000-8000mm/min (the top speed in the market) |
|
Step distance |
Adjustable according to requirement (> =250mm) |
|
Forming roll (roll station) |
20-28 PCS |
|
Forming roll (alignment) |
5-7 PCS |
|
Power Requirement Main motor power |
5.5 Kw-7.5KW (Depend on final design) |
|
Hydraulic Station Power |
5.5Kw |
|
Uncoiler' s loading capacity Max. Capacity |
5000kgs (can be increased to be 10T) |
|
Controlling system |
Mitsubishi PLC & converter |
|
Dimension |
Approx*1.8m*1.5m*1.4m (Depend on final design) |
|
Voltage |
380V 3 phase 60Hz or at buyer' s requirement |
