ABSTRACT:
Glazed tile produced by this kind of machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on.

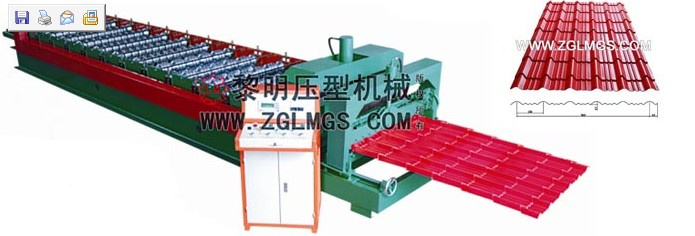

It consists of feeding platform, main molding core, shearing mechanism, hydraulic station, computer control cabinet, glazed tile roll forming machine, high precision counter and so on.
Function and feature
This producing line uses galvanized steel sheet, colored armor plate or aluminum plate as the material plate. The products of it are used as the roof tile and wall panel outside of building, to increase the beauty and durability of the roof tile and wall panel. This line has no limit on processing length; You can set several different data on the computer control cabinet according to your own need. After pressing the button "Confirm", the machine can produce the panel automatically according to the set data. The molding plate surface smooth and not easy to be marked when it is being stamped. So it is easy to install. The product conforms to National Steel Construction Building Standard.
Features of this producing line:
Lower cost
High efficiency
Reliable working
Low energy consumption
Technical parameters:
Material spec: Colored steel sheet, galvanized steel sheet
Chargein width: 1200mm
Thickness of coil sheet: 0.4---0.8mm
Main motor power: 4kw
Forming speed: 8--10m/min
Hydraulic station power: 3kw
Quantity of stands: About 12 groups
Hydraulic pressure: 58mpa
Controlling system: PLC
Index error of length: 10m± 2mm
Total weight: About4, 300kg
Voltage: 380V3 phase 50Hz or at buyers requirement
Material of main equipment:
Roller material: High grade No. 45 forged steel, plated hard chrome on the surface of roller with thickness 0.05mm
Active shaft material: High grade No. 45 carbon wrought steel at diameter 70mm
Cutter blade: Cr12 mould steel with quenched treatment
Glazed tile stamping: Cr12 mould steel with quenched treatment,
Frequency converter
PLC: Computer adopt PLC
Computer operating board adopt OP320A, China
Processing technique and deployment:
Uncoiler
Feeding platform
Molding core
Molding shearing mechanism
Hydraulic station
Computer control cabinet
Step-formed mechanism
Counter
Working flow:
Decoiling the sheet--sheet guiding---roll forming---measure length---glazed steel stamping--cutting ---the panel---panels to the supporter
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
