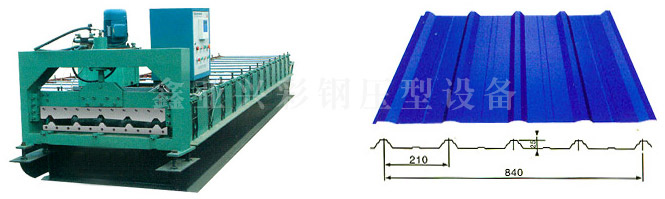

The whole process is computer-controlled. It is the necessary equipment for producing the wall &roof tile for industrial workshop and warehouses, super market and so on.
Lower cost High efficiency
Reliable working Low energy consumption
Main structure is made of high tensile strength H beam, with precision welded and good rigidity.
Shaft, roller and all components are manufactured precisely to have long lifetime.
Efficient design, easy maintenance and operating.
Forming machine parameter
Feeding width: 1000mm
Thickness: 0.3-0.8 mm
Machine dimension: 6000mm× 130mm × 1200mm
Motor power: 4KW
Hydraulic station power: 3 KW
Production line speed: 10-16m/min
Machine weight: 2.3T
Forming row: 11 rows
Roller: #45, chrome
Voltage: 380V/50-60Hz
Shaft, axis: φ 75
Medium plate: 14mm
Main frame: 250 H steel
Wheel, chain: 1 inch
Electrical system: PLC(color-touched-screen)
Frequency converter
Encoder
Machine advantages: Surface is smooth and tidy without abrade, firm bonding after forming and cutting.
Components
Feeding station: One set
Forming machine: One set
Hydraulic station: One set
Automatic cutting: One set
Computer controller: One set
Normal Decoiler: One set
Packing method
Main machine is nude, with waterproof cloth and stow-wood. Imported computer control system packed with waterproof cloth and card board.
Sales-term
Payment term: 30% when signing the contact, the rest of payment must be paid when delivery.
After-sale service
If customer needs installation and adjustment instruction, we could send personal technicians for help, but the transportation and, accommodation cost and worker's salary will be paid by buyer.
Delivery time
Stock
Botou YaXing (HBYX) Roll Forming Machinery Co., Ltd. is located in "the town of casting molds", enjoying convenient and highly effective transportation for being close to No. 104 National Way, No. 106 National Way and Jingjiu Railway.
Our factory specializes in producing and designing each kind of roll forming machine and automatic cutting machine. Our products are widely applied to manufacture colored steel tiles for industry workshop, warehouse and high-rise construction site. We undertake production with high technology and comprehensive processing equipment.
We can design according to our customers' requirements and we will do our best to meet your needs.
We mainly manufacture & export the following three series of products:
1) Roll forming machines:
PU sandwich panel forming machine, tile forming machines, wall and roof forming machines, decking forming machines, C&Z forming machines, guard roll forming machines, shutter door forming machines, PU sandwich panel forming machines, slitting machines, cut to length machines, building material supplementary equipment
2) Steel structure machines:
Flame cutting machines, assembling machines, gantry automatic welding machines, straightening machines,
Shot blasting machines for H-beam
3) Steel coils and formed products Single formed panels:
Tile sheets, corrugated sheets, floor decking sheets, C&Z purlins, H beams, steel structures, guard fences, guardrails Sandwich panels: EPS sandwich panels, PU sandwich panels and rock wool sandwich panels
We have already established favorable relationships with many clients in more than 20 countries such as America, Chile, Australia, Jordan, Saudi Arabia, Nigeria, and India.
Our company has a group of experienced senior engineers and technicians. They were from machinery, automatic control, power electronics, and other fields, and our skilled workers ensure high quality products for our customers with perfect quality management and testing systems. We're always able to meet your customized needs. From basic economical roll formers to the most complex, we fashion a solution to meet your production goals and budgets.
