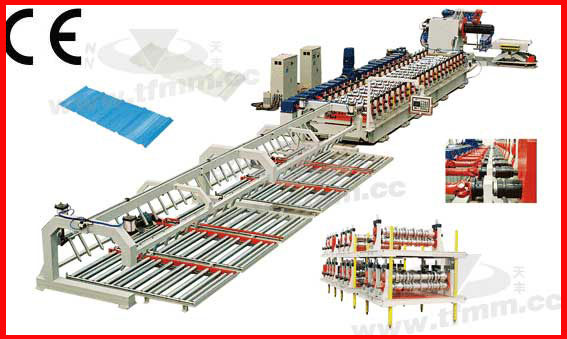

Roll Former for Roof Panel, Wall Panel:
1. This kind of cold roll former is widely used for making various metal wall panels and roof panels for steel constructions, steel structure projects and containment systems etc.
2. This production line consists of feeding unit, uncoiler, feeding guide, roll forming machine, cutter, automatic stacker, hydraulic system and electric control system.
3. The line speed of this panel forming machine is 40m/min.
Components of Roll Former for Roof Panel, Wall Panel:
1) Un-coiler:
Electric un-coiler, with coil-car
Load capacity = Max. 10Tons;
2) Roll forming machine:
About 18steps to form;
Material of Roller: 45# steel with chromizing on surface
Voltage: 380V/50Hz; Main line speed: 40m/min;
3) Hydraulic cutter:
4) Stop to cut, Post cut,
5) Cutting tool material: Cr12, Heat treatment
6) PLC control system:
Using Mitsubishi PLC Control the quantity, length automatically, LCD screen; Remote control available
Which complying with European Unions safety standards and has been passed CE.
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
