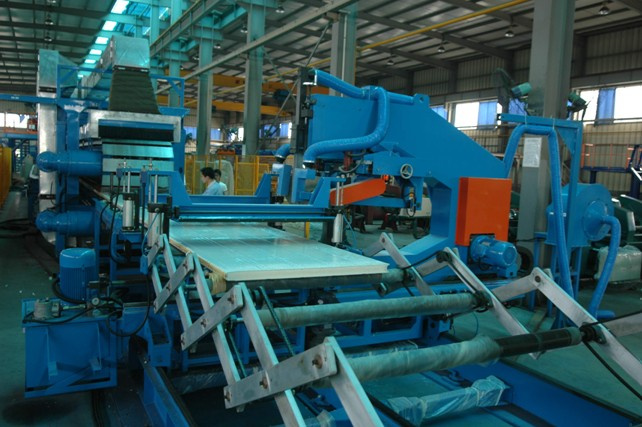

A: PU wall panel
1. Producing mode: Continual automatic manufacture
2. Material size: Thickness: 0.35---0.7mm, intensity: Max G250Mpa color steel sheet, aluminum sheet.
3. Sheet width: Max 1200mm
4. Sandwich panel sheet material: Metal plate for up and down, two layers
5. Power: 25KW
6. Total power: 40KW
7. Roll forming machine structure: Use two layers roll forming machine, matched with PU sandwich machine
8. Combined machine structure: Use up, down, left, right, four sides strap to fix position
9. Foam system: Adopt continuous automatic foaming. The foaming is can't adjust.
10. Foam thickness: Confirm some specifications between 50-120mm
11. Working speed: 6-8m/min
12. Control way: All use PLC control
13. Precision: ± 2.0 mm/10 m
14. Weight of the equipment: About 25000kg
15. Length of the equipment: About 68000mm
B. PU roofing roll forming machine
1. Manufacture mode: Discontinuous automatic manufacture
2. Material: Thickness: 0.35----0.7mm, intensity: Max G250Mpa color steel sheet, aluminum sheet.
3. Sheet width: ≤ 1250 mm
4. Material: The down layer is made of metal plate, up layer is made of PVC film
5. Power: 25KW
6. Total power: 40KW
7. Roll forming machine structure: Single layer roll forming machine, separated with PU combined machine
8. Combined machine structure: Use up and down strap to fix the position
9. Foam system:
10. Sparking thickness: Confirm some specifications between 25-80mm
11. Working speed: 6-8m/min
12. Control way: All use PLC control
13. Weight of the equipment: About 20000kg
14. Length of the equipment: About 9000mm for roll forming machine(according to different plate)
PU combined machine: About 30000mm
Zhangjiagang City Saibo Science & Technology Co, . Ltd is a professional manufacturer specializing in the developing and exporting of roll forming machine and welding pipe line, such as Metal roof & wall panels machine, C&Z purlin machine, drywall stud-track forming machines, Metal deck machines, K-span and columniation curves forming machines, and guard rail forming machines, downspout roll forming machine, weld pipe machine line and so on.
Our company, which is located in Zhangjiagang city, is close to Zhangjiagang Economy Development Area and Shanghai City with superior geographic and convenient transportation.
Since 90s, in 20 centuries, the market for steel structure building industry boomed but with the development of steel structure industry, the shorter period for construction and beautiful external appearance, as well reasonable price was occupied in the market of building industry.
Zhangjiagang Saibo Science & Technology Co, . Ltd engaged in the steel structure industry in many years and devoted to developing some steel structure machines with a professional technology and reasonable price, we supply the best machine for our regular customer. In particular, we are a leading exporter in the field of steel structure construction, and can provide professional service, high quality, and installation. Our goal is" future by heartiness, faith leads to the world"
Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefits.
