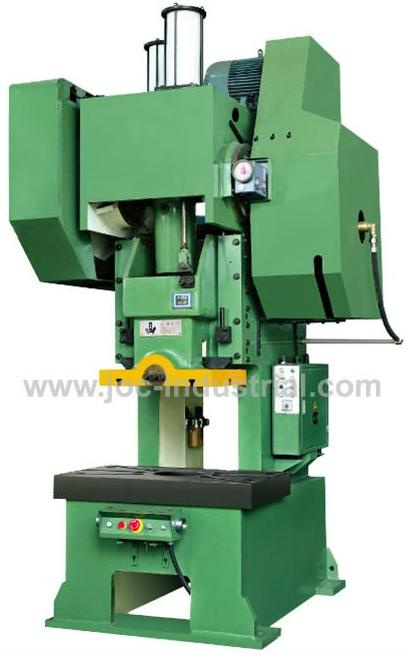

Press Machinery CE (PM-80/3)

Name: Press Machinery CE (PM-80/3)
Brand: china-castingforging.com
SKU: 617037804
Availability: InStock
Rating: 4.6 (104 reviews)

Price:	Negotiable/Piece
Trade Terms:	FOB
Min Order:	1/Piece
Pay Type:	T/T

Contact Supplier

Wuhan Joc Industrial Corporation Limited

Showroom Product Company Profile

-PLC control
-Pneumatic combination friction clutch-brake
-Press-collape block device, to ensure safety in press operation

Features:

-Steel-welded frame, high rigidity and less deformation

-The crankshaft arranged crosswise and the drive system placed on the two sides of the machine body making it easy to mount and repair.

-Pneumatic combination friction clutch-brake, to ensure reliable safety and flexible action.

-Press-collape block device, to ensure safety in press operation;

-PLC electrical control system, to ensure high reliability and high adapability

-Photoelectric protector, transmission output axle, feeder, air cushion and other optional accessories are available for the power press subject to user's demands.

Description/Model			PM-25/3	PM-40/3	PM-63/3	PM-80/3	PM-100/3	PM-125/3
Nominal Pressure		kN	250	400	630	800	1000	1250
Nominal Pressure		mm	2.5	3	4	5	5	5
Stroke Of Slide		mm	80	100	120	130	140	150
Strokes		S. P.	90	55	50	50	45	45
Max. Die Set Height		mm	180	220	270	280	290	340
Die Height Adjustment		mm	60	80	90	90	100	100
Depth of Throat		mm	190	240	260	290	320	340
Distance between Uprights		mm	250	390	410	410	530	540
Size of Table	L-R	mm	560	700	710	710	1000	1000
	F-B	mm	360	460	480	480	600	650
	Thickness	mm	70	80	90	90	120	120
Size of Opening in Table	Diameter	mm	φ 120	φ 150	φ 180	φ 180	φ 200	φ 200
Bottom Size of Slide	L-R	mm	220	320	320	320	550	550
Bottom Size of Slide	F-B	mm	200	270	280	280	450	450
Hole for Punch Shank	Diameter	mm	φ 40	φ 50	φ 50	φ 50	φ 60	φ 60
Hole for Punch Shank	Depth	mm	60	70	70	80	80	80
Speed Motor Power		kW	2.2	4	5.5	7.5	11	11
Overall Dimensions(F-B× L-R× Height)		mm	1350× 980 × 2130	1320× 1300 × 2300	1450× 1400 × 2550	1500× 1450 × 2930	1600× 1500 × 3100	1680× 1600 × 3250
Total Weight		kg	1850	3800	4800	5500	8600	9500

Prod Model:	PM-80/3
Markets:	North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
