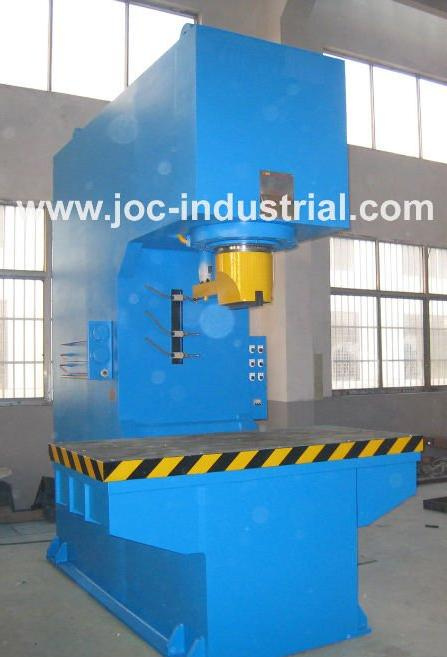

Hydraulic Press (PHF-400L)

Name: Hydraulic Press (PHF-400L)
Brand: china-castingforging.com
SKU: 617038014
Availability: InStock
Rating: 4.6 (116 reviews)

Price:	Negotiable
Min Order:	1/Set
Pay Type:	L/C,T/T,D/P

Contact Supplier

Wuhan Joc Industrial Corporation Limited

Showroom Product Company Profile

Prod Model:	PHF-400L

Product Description

Used for calibration, assembly for shaft, sleeve part, straightening for I steel, channel steel, round bar and angle steel, etc

Application:

-This machine mainly used for calibration, assembly for shaft, sleeve part, straightening for I steel, channel steel, round bar and angle steel, and also shaping, cutting, imprinting for parts.

Description/Model		unit	PHC-100L	PHC-160L	PHC-200L	PHC-315L	PHC-400L	PHC-500L
Nominal force		KN	1000	1600	2000	3150	4000	5000
The max. working pressrue of fluid		Mpa	26.3	26	25	25	25	25
The max. distance between the slide bottom and top for working platform		mm	400	500	500	600	600	600
The velocity of the spindle nose	Down stroke	mm/s	40	24	23	23	23	18
The velocity of the spindle nose	Return	mm/s	120	93	55	55	55	45
The max. stroke of the piston rod		mm	200	300	500	500	500	500
Throat depth		mm	300	325	325	350	400	450
The size of the working platform	F-R	mm	500	500	600	600	600	600
The size of the working platform	L-R	mm	2000	2000	2000	2000	2000	2000
The height of the working platform to ground		mm	900	1000	1000	1000	1000	1000
The power for motors		kw	11	11	11	15	15	22
Overall dimension	F-R	mm	1460	1650	1630	1800	1800	1800
	L-R	mm	2000	2000	2000	2000	2000	2000
	L-R	mm	2130	2800	3000	3200	3500	3700
Total weight		t	5.5	16	18	20	25	30

We sincerely hope establishing long and friendly business relations with clients from all over the world. Our goal is not just providing product, but also providing a complete solution including product design, tooling, fabrication and service for our customers to achieve their upmost satisfaction.

We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective. To perfect our service, we provide the products with the best quality at the reasonable price.
