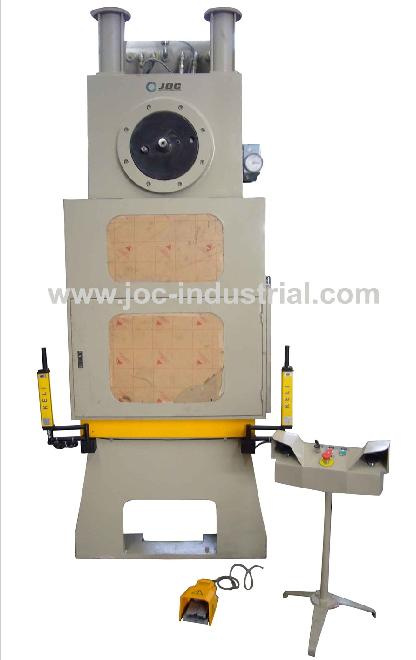

Product Description
Slide stroke is adjustable
Features:
-The body of this machine is welded with steel plate, with good rigidity and stable precision, and with compact structure
-Using the combined pneumatic friction clutch
-with hydraulic overload protector
-with smooth engagement, agile action and low noise
-Gear pair adopts the flooding system lubrication
-Die height set is adjustable by means of motor
-The crankshaft is equipped with a travel regulating device, and sliding block travel is adjustable
-For the sliding block, the square-shape extended hexagonal guide rail is adopted. The guiding surface is made of copper plate and with high precision
Nominal force (kN) |
630 |
Stroke under nominal force (mm) |
4 |
Slide block stroke (mm) |
10-150 |
Number of strokes (min -1 ) |
Fixed |
70 |
Variable (Optional) |
60-80 |
Max. die set height (mm) |
300 |
Adjustment of die set height (mm) |
80 |
Distance from slide block centre to frame (mm) |
300 |
Worktable dimensions (mm) |
580x900 |
Table hole dimensions (mm) |
200x40x180 |
Thickness of bolster (mm) |
110 |
Dimensions of hole in bed (Diameterx F· BxL· R) (mm) |
365 |
Dimensions of slide block bottom surface (F· BxL· R) (mm) |
400x480 |
Size of the handle hole (Dia. x Depth) (mm) |
50x80 |
Distance between columns of body (mm) |
620 |
Main motor capacity (kW) |
5.5 |
Overall dimensions (mm) |
1850x1210x2600 |
Net/gross weight (kg) |
6500/7400 |
