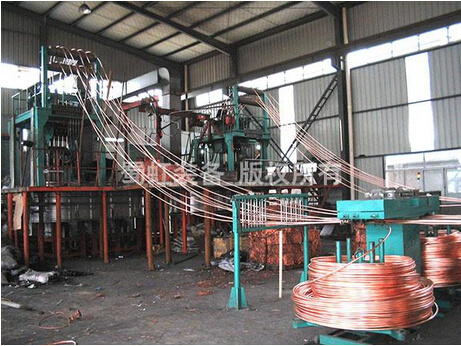

Oxygen-Free Copper Rod up-Casting Line
| Price: |
US $ 50000/Piece |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T,D/P,Western Union |
1. General introduction
The oxygen free copper rod produced by Continuous Up-casting Line is high-conducting electrical material. It has the following characteristics: High conductivity, low oxygen content, excellent elongation. After further processing, the final products can not only be wires and cables, magnetic conductor, enameled wire, but also can be used in others electronic products, such as telecommunications products, etc. Low investment, quick running of the production line, quick return of the capital investment is main feature of this line.
2. Technology process
Electrolytic copper plate by the hanging body transported to the melting furnace bake-according to the up-casting speed to determine feeding speed, the copper plate add to copper melting furnace melt into copper liquid(in this case need to charcoal cover, off oxygen and isolate oxygen-copper liquid enter into transition module(At this time still need to cover the charcoal, off oxygen and isolate oxygen further) -copper liquid enter into holding furnace- copper liquid into crystallize crystal copper rod-copper rod into traction up-casting-copper rod enter into output frame- copper rod enter into sub-line stand(so copper rod will not entwined each other) -copper rod into tension frame(control take up speed) -copper rod into take up machine coiler.
3. Units technical parameters
Up-casting machine for producing bright oxygen free copper rod.
Basic principle for the unit:
The electrolytic copper will be melted into liquid in induction furnace by units. It's insulated with air by covering surface charcoal or graphite flake (avoid copper liquid Oxidation) to keep the copper liquid temperature 1150degrees± 10degrees from holding furnace. Copper liquid fast crystallize in crystallization for continuous producing copper rod by casting machine. Finally, it's had plated into product by double take-up machines or other auxiliary equipment.
Our company summed up the running situation of up-casting machine by manufacturing around the country. The main drawback is that there is the situation of poor crystalline after use a long time. We carried out a special designed according these situation.
1)The transmission of the traction drive use expansion sleeve seamless connection, ensure the each instruction of PLC program accurately in place.
2)Made some special changes in the PLC control program, improve the crystal quality of copper rod.
3)The furnace made a reasonable improvement, let the copper liquid more stable, ensure the good crystal.
| Prod Model: |
SH Brand |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Size: |
Customize |
| Certification: |
CE |
| Type: |
up Ward Casting Machine |
Chengdu Shuhong Equipment Manufacturing Co., Ltd (formerly Chengdu Shuhong
Machinery Corp., Ltd). is located in Qingbaijiang district of Chengdu, the beautifulland of abundance. The garden company was established in 1996, which is a self-R-D, manufacturing and mechatronics economic entity. The factory covers an area of 120, 000m2 with production workshops about 50, 000 m2. It owns various types of machining equipments, including floor-type CNC boring machine, vertical lathe, mill machine, planer, grinding machine, wire-electrode cutting, etc., lifting equipment such as 60T cranes, welding equipments, non-destructive testing equipments, and precision forging equipments.
Including: Two workshops 28313.10 m2
Office building 9479.50 m2
Stated Technology Center 4537.80 m2
Our company focuses on wire and cable equipments research and innovation, and becoming the leader of advanced technology in the industrialincreasingly. Depends on innovative technology, excellent products quality and thoughtful after-sales service, the copper/aluminum (alloy) rod CCR line with refining melting furnaces designed by Chengdu Shuhong have occupied about 80% domestic marketing share, products in the same industry in the country, even the first year sales. In the meanwhile, the products also have been exported to more than 20 countries and areas, including USA, Mexico, Turkey, India, Indonesia, Malaysia, Iran, Iraq, Syria, Algeria, Egypt, and Kazakhstan, etc., Chengdu Shuhong is a trusted partner for customers at home and abroad.
With years of rich service experience in the wire and cable industry, Chengdu Shuhong intakes the advanced technology from both domestic and overseas constantly, and has developed a series of new products to meet the full customer demand for unique personalized, such as: wheeL-belt type aluminum alloy ingot casting production line, 40-48t/h copper rod continuous casting and rolling line, 8t/h aluminum alloy continuous casting and rolling line, etc. The company has developed and produced of a grand total of more than 20 types products, including: non-ferrous metal rolling equipment, power cable equipment, submarine cable equipment, ferrous metal rolling equipment, environmental protection equipment, pressure vessel and so on. Chengdu Shuhong has got nearly 20 national patents and established the ISO9001: 2008 quality management system. ''SHUHONG'' is the provincial and municipal famous brand, China famous brand, and the main product has been promoted to be quality reliable products by China Electrical Equipment Industry Association.
Nowadays, Chengdu Shuhong has made great progress, and adhering to the concept of ''Innovation, professional manufacture, sincere service'', Chengdu Shuhong with full''enthusiasm and moving toward with a goal of becoming the world- leading electrical ''equipment manufacture. ''The chairman of company, Mr. Huang Hechang would like to invite all friends of different ''fields at home and abroad to our company, beautiful Chengdu city, and seek for mutual cooperation and together development.
