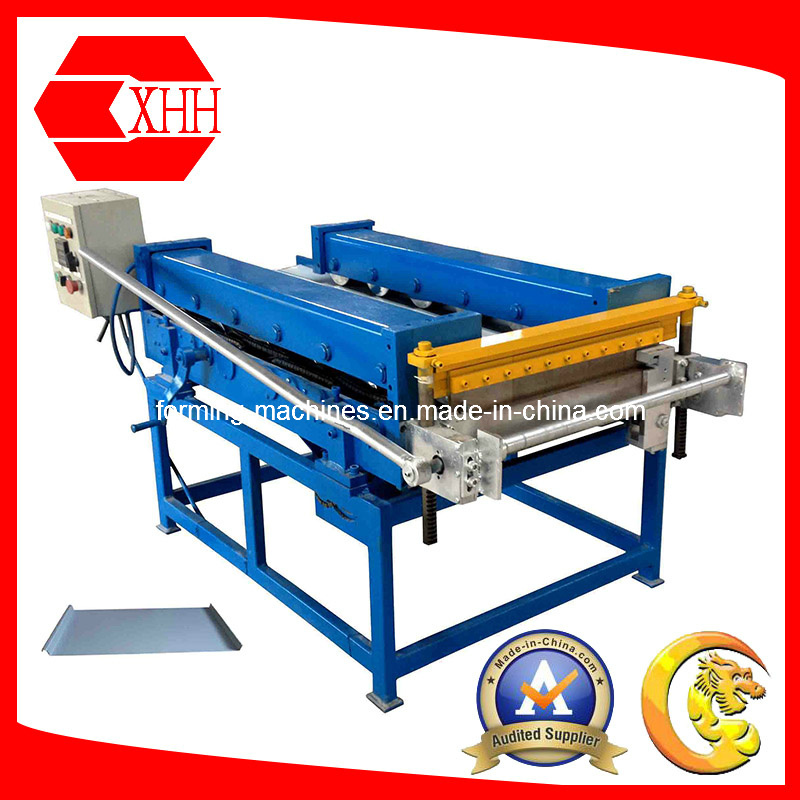

Minitype Roll Forming Machine With Adjustment For Standing Seam Roofing:
(1)Forming Steps: 6 steps
(2)Forming Speed: 6-8m/min
(3)Height of Roofing: 25mm
(4)Roofing Width: 200-650mm
Main Accessories:
A: Main Standing Seam Roofing Machine;
B: 3 Tons Manual Uncoiler;
C: PLC Computer Controlling System for Touch Screen;
D: Device for Adjusting Variable Width;
E: Hydraulic System;
F: Hydraulic Forming Cutter;
G: Run Out Table(3 PCS)
H: Protective Cover;
I: Tools;
|
1. |
Dimension |
2000*1100*1200mm |
|
2. |
Weight |
10 00KGS |
|
3. |
Motor Power |
2.2KW |
|
4. |
Power for hydraulic forming cutter |
0.75KW |
|
5. |
Voltage |
415V/50HZ/3PH |
|
6. |
Forming Steps |
6 steps |
|
7. |
Forming Speed |
6-8m/min |
|
8. |
Thickness for Steel |
0.5-0.8mm |
|
9. |
Thickness for Aluminum |
0.5-1.0mm |
|
10. |
Thickness for common use and test |
0.7-0.9mm |
Established in 2004, Xiamen Xinhonghua Machinery Co., Ltd which is load in nice island city of Xiamen is specialized in manufacturing roll forming machines with hydraulic systems and PLC computer controlling systems. Our company has advanced technologies and great experience in the R&D, manufacture, installation, testing and training.
Our company can supply a wide range of Al-Mg-Mn panel forming machines, standing seam roofing machines, C/Z shaped Auto full adjustment purline machines, tapered-shaped standing seam roofing machines, colored roof panel machines, glazed tile machines, shaft forming machines, rolling door machines, flattening machine with slitting and cutting device, floor decking machines, highway guardrail machines, auto adjustment curving machine and hydraulic bending machines.
We enjoy a good reputation with the enterprise spirit of "Innovation chases the development; Management earns benefit". We insist on the service philosophy of "Satisfying our customers' needs".
Our products sell well at home, and are exported to clients in the Philippines, Indonesia, India, Malaysia, Ameria, Dubai, Singapore, Brazil, Turkey, Canada, Africa, Tailand, Columbia, the Middle East and other countries and regions.
