Medium Frequency Rod Heating Furnace for Inductiton Forging The Rod of Steel, Stainless Steel, Copper, Brass or Aluminium

Medium Frequency Rod Heating Furnace for Inductiton Forging The Rod of Steel, Stainless Steel, Copper, Brass or Aluminium
Price: Negotiable/Piece
Trade Terms: FOB,CFR,CIF
Min Order: 1/Piece
Pay Type: L/C,T/T,Money Gram,Western Union


Main Specifications:
1. Main structure:
(1) GMF-35/45 M. F. Generator
(2) Compensate cap and Working Table
(3) Induction coil and SS tube, etc.
(4) Pneumatic rod feeder
2. Maximum input power: 35KW/45KW
3. Output oscillating frequency: 1_20kHz
4. Input: 3P 380V, 50 or 60Hz
5. Cooling water desire: 0.2MPa, ≥ 10L/Min
6. Table size: L1.2m× W0.6m× H0.68m
7. Weight: 123KG/135KG
8. Heating ability: (KG/min)
(1) Heating steel to 1050 degree: 1.25KG/1.67KG
(2) Heating brass to 700 degree: 1.75KG/2.33KG

Main applications:

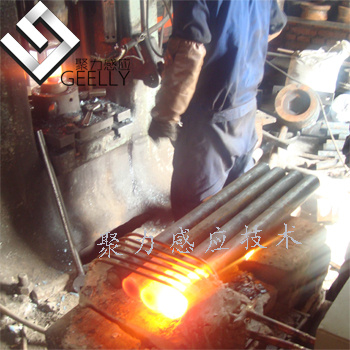

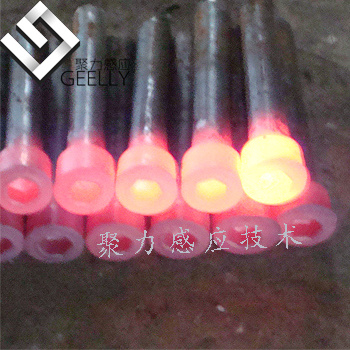

These models can be used to heat the rod of steel, stainless steel, copper, brass or aluminium with diameter from dia 12 to 30mm in the shaping of screws, nuts, valves, locks and other metal parts.

Advantages and characteristics:
1. The coil is usually 500mm or 600mm long, and there are five to ten pieces of metal bars inside the coil to be heated. Coil size is depended on the rod diameter, and coils can be easily changed.
2. The output oscillating frequency is about 10kHz when heating rods from diameter dia 12 to 30mm, penetrating heating is maintained, at the same time, high heating efficiency can be achieved.
3. Pneumatic rod feeding system is applied, and to certain rod, only the heating power and the feeding speed are adjusted to send the red rod out continuously by step. It is very convenient to operate.
4. With the small size and tight structure, the Rod heating furnace can be put besides the press machine to ease the operation.
Prod Model: GMF-Series
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Totalfrequency Furnace
Usage: All Metal Melting
Fuel: Electronical
Shenzhen Geelly Technology Co., Limited is specialized in manufacturing High and Medium Frequency Induction Heating heaters and related equipment.

We own gifted engineers for developing and improving of induction heating generators. We have research lab and production base, We manufacture wide range of product lines which include induction heaters in range of power from 3KW to 240KW and output frequency range from 2kHz to 1.1MHz. We also manufacture and design Gold melting furnace, Platinum melting furnace, and the coils of induction heaters. Industrial refrigerating machines. We also offer spare parts of induction heater and some auxiliary parts, such as Silver-Gold Filler Metals, foot switches, High temperature resistant insulating tape and so on.

Our induction heater have been used by more and more customers home and abroad due to the good quality and reasonable cost. Our products offer a perfect solution in the fields of metal heating soldering and brazing, forging, shaping, heat treatment and melting.

We offer technical consultation to inquires with instant feedback and recommend suitable machine models for varied applications.
