Lgz-1500+255/15y Type Aluminum Rod Continuous Casting and Rolling Line
| Price: |
US $ 170600/Set |
| Trade Terms: |
FOB,CFR,CIF |
| Min Order: |
1/Set |
| Pay Type: |
L/C,T/T |
I. Application of the Equipment:This line is designed to produce conductive aluminum (A1) rod by means of continuous casting and rolling. The rods are produced in diameter of 9.5mm.

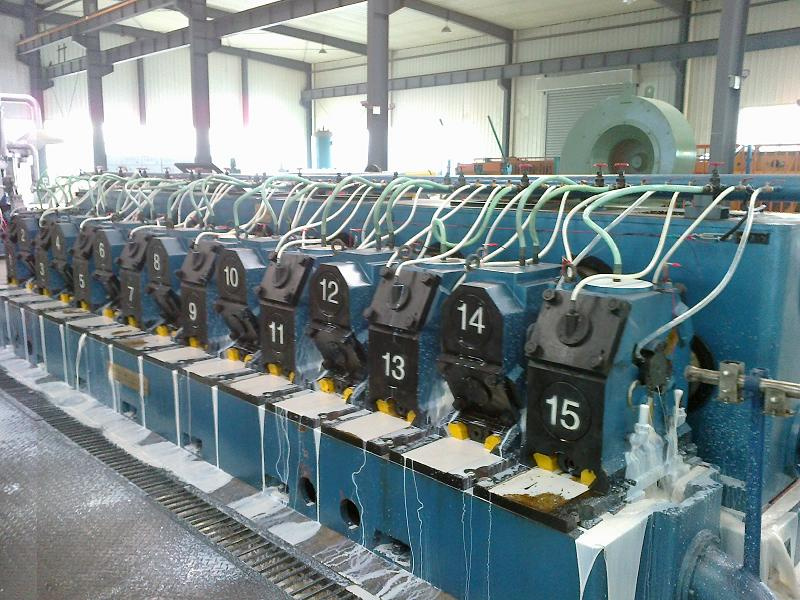

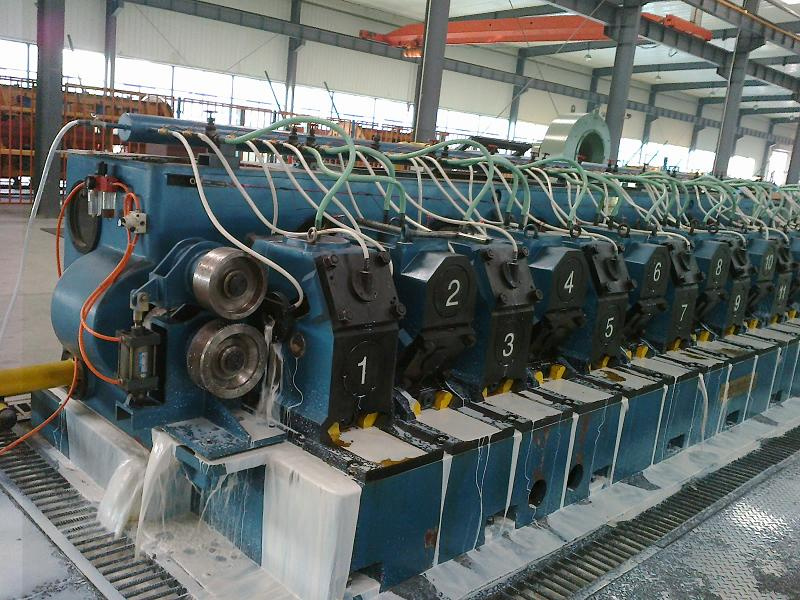

. equipment name and construction1.:LGZ-1600/Y Name: LGZ-1600/Y type aluminum rod continuous casting and rolling line 2.:,,,,,,. Main construction: four-wheel type casting machine, hydraulic shearer, rolling machine, rod collecting device, emulsion cycle device, lubricating oil cycle device, electric control device. .II. Brief Technological process: 1,→→→→→→→Ordinary ingot → melting furnace → holding furnace → casting machine → hydraulic pressure shearer → continuous rolling machine → double baskets continuous rod coiling machine → aluminum rod 2,,,2420mm2M.,,,The melting aluminum or the melted aluminum, through the holding furnace and the launder get into wheel belt casting machine, continuous cast into 2420mm2 section M type aluminum ingot. Then through the cantilever balance pendant oil hydraulic shearer cut the useless ingot, then press the upper small and feed into the rolling machine and outlet rod, at last through the guide wheel tube, double frame down wire machine revolve rod in coil. .1.: 9.5 mm2.: 2.5-4.2 t/h3.: 32.05×7.2×4.2 m()4.: 65 t 5.: 350 kwIII. Main specifications:Diameters of the rods: 9.5mmProduction capacity: 2.5-4.2 t/hOverall dimension: 32.05×7.2×4.2 m(don't include furnace and cooling cycle system)Total weight: 65 tonsTotal power: 350 kw .() 1. 1600 mm2. 2420 mm23. 2420 mm24. 8-15 m/min5.: 500-1000 rpm6. 1.66-3.3 r/min7. 3 kw (DC,N=1500r/min)8. 0.35-0.6 Mpa9. 60 t/h (:40t/h, :20t/h)Technical Data of Each Component:1. The continuous casting MachineDiameter of the crystallizing well: 1600mmCrystallizing well: 2420mm2Area of the casting: 2420mm2Casting speed: 8-15m/min Rotating speed for motor 500-1000 rpm Rotating speed of the crystallizing wheel: 1.66-3.3r/minPower of the motor: 3KW (DC, N=1500r/min)Pressure of the cooling water: 0.35-0.6Mpa Volume of the cooling water: 60t/h (of which 40t/h for internal cooling while 20t/h for external cooling) () 1. 12000 kg2. 65 mm3. 34. TV-0.50 500kg5. YB-25, 65kg/cm2, 25 L/min6. 4kw, N=960r/min2. Single Track Oil Hydraulic Shearer Max. shearing force: 12000kgMax. shearing stroke: 65 mmshearing speed: 3 secondelectric block type TV-0.50 lifting weight: 500kgvane pump type YB-25, oil pressure 65kg/cm2, Oil content 25 L/min motor power 4kw, N=960r/min ()Y Y Type continuous rolling machine1.: YType Y-shaped 3 rolls2.: 9.5 mmDiameter of the produced rod: 9.5 mm3.: 15number of the stands 154. : 255 mmNominal diameter of the rolls: 255 mm5. : 1:1.25Transmitting ration between two adjacent stands: 1:1.25 6.: 6.2 m/sFinal rolling speed 6.2 m/s7.: 902.5 mmCentral height of rolling: 902.5 mm8.: 250 kw(DC, N=500r/min) Power of the main motor 250 kw(DC, N=500r/min) 9.: 5 m3 Gear box lubricating oil box ()() 5 m3Oil lubrication system(used for lubrication of gear box):including 1)(5m3) 1
Oil box (5m3) one
2) 2CY-18/3.6-2 218m3/h,3kg/cm
2Oil pump 2CY-18/3.6-2 two Max flux 18m3/h, working pressure 3kg/cm2 3)GLQ-80 2 Filter GLQ-80 two()()Emulsion lubricating system(used for cooling or lubrication for aluminum rod rolling):including 1)IS100-65-200 2 100 m3/h,5kg/cm
2 Emulsion pump IS100-65-200 two2) 35m2 1
Cooler 35m2 one3)GLQ-100 2 Filter GLQ-100 two() The coiler 1. 1.1 kw (DC, N=1500r/min)Wrap rod motor power 1.1kw(DC, N=1500r/min)
2. 15-90 r/min Wrap rod head rotating speed: 15-90r/min
3. 2 kwmotor power for rod collecting car 2 kw4. 0.75 m/s rod collecting car traveling speed 0.75m/s
5. 1800 mmaluminum rod roll dia. 1800mm6. 1.5-2.0 taluminum rod in coil weight 1.5-2.0t
| Prod Model: |
LGZ-1500+255/15Y type |
| Markets: |
Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Lgz-1500+255/15y Type: |
Aluminum Rod Continuous Casting and Rolling Line |
| Precision: |
High Precision |
| Certification: |
ISO |
| Demoulding: |
Automatic |
| Heating System: |
Electric |
| Function: |
Lubrication |
| Mould Life: |
>1,000,000 shots |
| Automatic Grade: |
Automatic |
| Condition: |
New |
| Customized: |
Customized |
| Warranty: |
12 Months |
We, Deyang Dongfang Zhuoyue Electrotechnical Equipment Co., Ltd are located in Deyang of China, the major technology and equipment manufacturing base. Now, our manufacturing factory building covers an area of more than 10, 000 square meters. We have more than 100 sets of large and medium-sized processing and manufacturing equipment, and a well-trained design, marketing, managing, machinery processing and equipping team composed of nearly 200 people.
We can manufacture various of complete plant(the latest model in domestic market), such as, Aluminium&Alloy Rod Continuous Casting And Rolling Line, Copper Rod Continuous Casting and Rolling Line, Tubular Stranding Machine, Rigid Frame Stranding Machine, Continuous Lead Extruding Line, Straight-line Aluminium &Alloy Rod Breakdown Machine, Straight-line Copper Rod Breakdown Machine, etc.
We have strong production ability and excellent sales team, we sell our products to our user directly, also, we always sell our products by some trading company or middle trader. We exported so many products to other countries such as Kazakhstan, Indonesia, India, Thailand, Korea, Ukraine, Mexico, Brazzil, Vietnam, Argentina, Kenya and so on.
We would like to provide the high-quality products and the good service, meanwhile, we will quote you the lowest market price.
We will be together with all the staff and workers, wholeheartedly offer our service, wait for your presence and stride forward with you hand in hand towards a brighter future.
