Specifications:

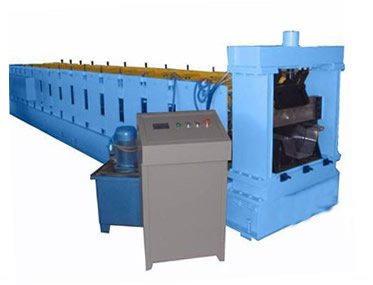

K- Span Curved Roll forming Machine:
1. Thickness: 0.8-1.2mm
2. Working speed: 12-15 mm
3. Roll stations: 17 stations
Details:
Main technology parameter:
1. Raw material (mm): 914mm effective width: 610mm
2. Thickness: 0.8— 1.2mm
3. Working speed: 12m— 15m/min (not contain cutting)
4. Roll station: 17 stations
5. Material of roller: Number 45 forge steel, polished and coated with chrome
6. Material of main shaft: Number45 forge steel diameter 80mm
7. Main power: 7.5kw
8. Hydraulic station power: 4kw
9. Hydraulic pressure: 12Mpa
10. Control system: PLC, Panasonic
11. Material of cutting: SKD11
12. Way of drive: Single row of chain: 1.5inch
ZuoJiaYou international industrial Co., Ltd is the registered in the Hong Kong special administrative region. It is a comprehensive company which has invested into the import and export industry for the machinery industrial and other goods in domestic. Our company has strong economic foundation, strong network of relationships, perfect technology and personnel configuration. We have a very completely mechanical independently research and development system, and a service system for import and export.
We have advanced production equipment and our engineering personnel and technicians have extensive experience in designing, developing, and manufacturing machineries. They pay close attention to and keep up with the developing trend of technologies and use new technologies in manufacturing machinery, to keep them competitive. Our products feature high efficiency, high flexibility and low cost.
"Customers are the first, success comes from development" is our principle. We bear this in mind during the whole process from design and development of product to after-sales services. We will design and manufacture machinery strictly in accordance with your requirements
Excellent service and high technology assist you to create a bright future.
