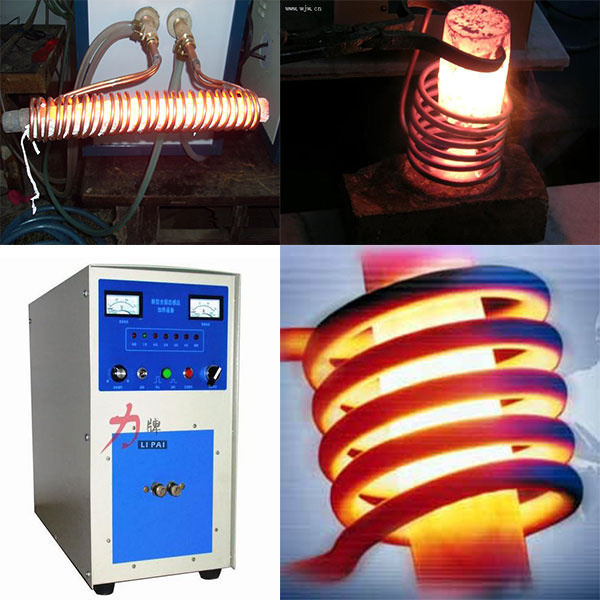

IGBT high frequency induction steel pipe forging machine WH-VI-30
*Advantages*
1,Energysaving : 30% compared to electronic tube high frequency, 20% compared to KGPS technology.
2,Stable operation :complete protection , make customers nothing to worry about.
3,Rapid heating : have non-oxidizing and little deformation.
4,Easy installation ,easy operation and little area occupied.
5,Isolation transformer :more safer, 100% start-up success rate with high power factor .
6,Environmentally friendly: no pollution , no dust and noise free.
7,Widely applications: can heat various of product.
8,Low failure rate :Components pass serious select and inspection, assure the equipment to work steadily.
9,Power gird: reduce the impact and pollution of harmonic to the power gird.
10,High degree of automation,contact with upper computer and IPC to realize machine operated automatically.
*Technical Parameter*
| Model | WH-VI-30 | Work power | Three phrase 380v/ 50hz |
| Max output power | 30kw | Working voltage range(AC) | 342-430v |
| Max input current | 55A | Oscillation frequency | 10-60khz |
| Cooling water flow | 15L/min(0.1mpa) | Cooling water pressure | 0.1-0.3mpa |
| Efficiency | 95% | Continuous load rate | 100% |
| Host weight | 45kg±5% | Host size | 580x280x510mm |
| Temperature protection | 50ºC | Color of host | Blue/White |
*Packing&Shipping*
Packing for induction heater:
Two wooden cases (plywood) Inside,will be filled with plastic foam,for waterproof and shockproof.
Accessories: induction coils,foot switch and installing and operating instructions
Shipping: by sea LCL(less than container load) or by air.
*Feature*
1. medium frequency induction aluminum forging machine can heat billet diameter from 40mm-200mm.
2. Maximum production rate 0.2-0.25T/Hour
3. medium frequency induction aluminum forging machine can heat Carbon steel, Stainless steel, Alloy steel, Aluminum Brass and Others
4. Uniform heating temperature is good for mold of press machine.
5. Heating rapidly reduces oxide skin on billet
6. IGBT inversion technology & LC series circuit design achieve energy saving up to 15%-30% compared with SCR technology medium frequency induction aluminum forging machine
7. Diode rectification technologies ensure high power factor -more than 0.95
8. Color and language printed according to customer's request
9. Widely use for bolt, nut, shaft, auto part, spring&pipe forming etc.
*Contact Information*
Thea li
Zhengzhou Gou's Electromagnetic Induction Heating Equipment Co.,Ltd
Linkedin: Thea Li
website:www.zzlipai.cn
Important NOTE:If there is anything about the important information(payment,account and so on)to be changed,I will confirm with you by phone:15225199097 and fax:.86-0371-86023266 .If there is only email,but no phone or fax,Please dont make any reaction.
Our company specializes in quenching, furnace, high frequency quenching, high frequency quenching furnace, hardening equipment. Using the German original Siemens IGBT power module, FUJI rectifier module, power output of epoxy resin cast transformers, 24 hours of continuous work. Effects of electromagnetic theory, the alternating magnetic field in the metal material within the rapidly induces a large eddy, so that the molten metal temperature until an electric induction heating equipment, but also penetrate non-metallic materials, metal materials or local All the rapid heating.
Old-fashioned high-frequency induction furnace, high voltage step-up access is by a direct step-up transformer for AC 380V, and its poor security, huge in size and power consumption, high maintenance costs of traditional coal oven heating, box-type electric heating, oxyacetylene heating equipment, welding and heat treatment, not only pollute the environment, waste energy, but slow and inefficient.
A new generation of high-frequency micro-power license induction heating power supply, completely changed the above-mentioned shortcomings, is the price recommended by the best environmental engineering heating equipment.
