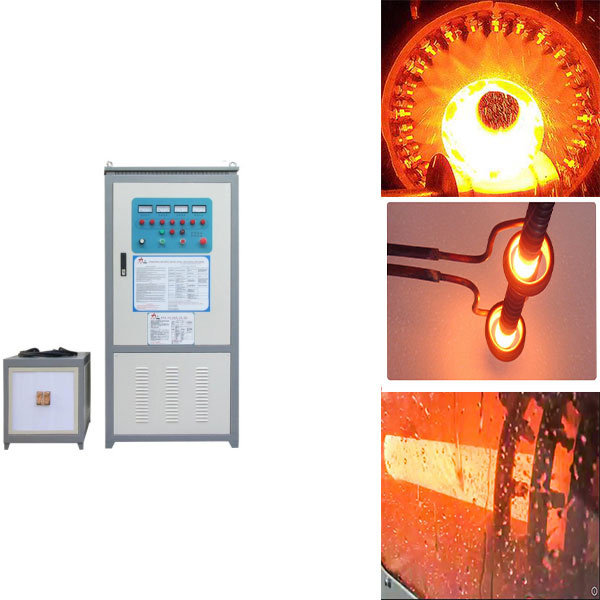

Power Saver Steel Billet and Iron Bar Induction Forging Equipment

Major Features

1-- GS-ZP-200 Medium Frequency Induction Heating Generator adopts voltage feedback resonant circuit.IGBT power components, high efficiency and energy saving, large output power, low frequency, good diathermancy
2-- Resonant frequency conversion, digital phase locking technique application, makes less energy consumption, perfect protection function, easy maintenance
3-- Modular design, equipment reliability higher
4-- portable and small design, easy installation, simple operation; No thousands of volts high-pressure danger, safe and reliable
5-- replace the other traditional heating modes (as:gas, oil, coking coal, electric furnace, vacuum tube high frequency heating ...)
6-- 100% 24 hours continuous working rate
7-- Greatly save electricity, heating per 1 ton steel, electricity, 320-360 degrees,saving more than 30% power than KGPS
8-- Not net side pollution, electric transformer no compensation capacitance by heating, electric heating, do not disturb with other equipment work

Technical Data


GS-ZP-Sries
Model	Input  power	Input voltage	Current	Oscillation frequency	Volume of  induction power mm3	efficiency
GS-ZP-200	200KW	380V/50-60HZ	330A	2-10KHZ	900*550*1800	100%
GS-ZP-250	250KW		420A		900*550*1800
GS-ZP-300	300KW		500A		0950*550*780
GS-ZP-400	400KW		690A		1000*550*1800


Applications

Hot forging aims to fabricate the work pieces of certain temperature (different materials require different temperatures) into other shapes through forging press with the help of punch press, forging presses,forging machine or other equipments, for instances, hot extrusion of watch case, watch flan, handle, mold accessory, kitchen and table ware, art ware, standard part, fastener, fabricated mechanical part, bronze lock, rivet, steel pin and pin,steel bar,steel rebar,stainless stell,etc.

electric foging furnace Selection Reference


Model	Oscillation Frequency	hardening layer depth	Heating depth of metal bar steel billet diameter
High Frequency	50KHz~150KHz	1.2~1.5mm	Less than 13mm
Supersonic Frequency	10KHz~50KHz	2.0~2.5mm	13~45mm
Medium Frequency	500Hz~10KHz	3.5~6mm	45~90mm


MF electric Forging furnace Applications and Product picturte disply:
Main Characteristics:
1 IGBT module and soft switching inverting technologies are as in the production of the generator, higher reliability can be do.
2 Small and portable ,compared with SCR controlled machine only 1/10 working space is needed.
3 High efficiency to save energy, high efficiency and power far can be maintained.
4 The generator is adaptable in a large frequency range from 1KHZ to 20KHZ,installation can be done very easily according to our manual.
5 100%duty cycle ,continuous working ability at maximum power.
6 Constant power or constant voltage control mode.
7 Display of output power, output frequency, and output voltage.
application range of industrial machine for queching/hardening :

It is mainly through the process of heating the workpiece , hardness of the metal  then changes.Specific applications are as follows:



1:various hardware tools, hand tools. Such as pliers, wrench, hammer, ax, screwdriver, scissors (gardening scissors) and the quenching;


 2:Various automotive, motorcycle accessories. Such as crankshaft, connecting rod, piston pin, wheel, aluminum wheels, valves, rocker shaft, drive axle, a small shaft, fork, etc. quenching;


 3:various power tools. Such as gear, shaft;


 4:the machine tool industry . Such as machine tool bed, Machine Tool, etc. quenching;

5:various hardware metal parts, machining parts. Such as shaft, gear (sprocket), cam, clamps, fixtures, etc. quenching;


 6:the metal mold industries. Such as small mold, die attachment, die quenching the hole, etc.

 parameters

Model	WH-VI-40	WH-VI-50	WH-VI-60
Work power	Three phrase 380v/50-60Hz	Three phrase 380v/50-60Hz	Three phrase 380v/50-60Hz
Max input current	62A	75A	90A
Max output power	40 kw	50 kw	60 kw
Cooling water pressure	0.1-0.3mpa	0.1-0.3mpa	0.1-0.3mpa
Host weight	45kg+/-5%	55kg+/-5%	65kg+/-5%
Transformer weight	29kg+/-5%	35kg+/-5%	50kg+/-5%
Efficiency	100%	100%	100%
Temperature protection	50 degree	50 degree	50 degree



advantages of industrial machine for queching\/hardening  :

1. Heat source on the workpiece surface, fast heating, high thermal efficiency
2. As Artifacts are not whole heating, little deformation
3. The workpiece heating time is short, surface oxidation decarburization quantity is little
4. The surface hardness quality high, small notch sensitivity, impact toughness, fatigue strength and wear resistance are greatly improved. Conducive to play the potential of materials, saves the material consumption, improve the service life of the parts
5. Equipment is compact, easy to use, good working conditions
 6. Easy to mechanization and automation
7. not only used in surface hardening can also be used in through the heat and chemical heat treatment, etc.
We can offer different services :
1. Reply your inquiry within 24 working hours
2. Experienced engineer instruct and sales communicate with you in fluent English.
3. According to work pieces specifications, heating requirements, propose best solutions,also reference your ideas.
4. Machine details and working video link for your reference
5. Competitive price ,compare with the same industry
6. Production: strict quality standard, to produce machine and induction coils.
7. Debugging machine and only good machine will be sent.
8. Tracking goods shipping and provide bill of lading,invoice,packing list and other documents what you need

Under  all staff work hard, our products are more and more popular in domestic and foreign market. So far, LIPAI induction heating equipment has been exported to USA,Finland,Denmark,Poland,Portugal,Russia,Ukraine,Australia,New Zealand,Malaysia,Indonesia,Vietnam, India, Iran,Iraq,Uzbekistan, Kazakhstan,Turkey, Azerbaijan, Bulgaria, Macedonia, Brazil,Mexico,Chile, Argentina,,Ecuador, Algeria, Morocco, etc. other countries and regions.

We will be more efforts, more active, increasing promotion of products in the international market, make induction heating technology better do a due contribution to the development of human industry.

Warmly welcome customers from all over the world to order online or visit us for further negotiate cooperation

FAQ
 1. What's your MOQ ?
At present we haven't strict policy for this,so welcome orders with any quantity.
2.  Are you a manufacturer or trade company ?
Yes,you can assured that we are a producer with full experience doing business in domestic and oversea.
3. We are not professional for your machine....................
While it is not a stumbling block,our machine is easy to operate,no need to professional training,and the instruction manual and vedio sent to you are enough.What's more,we have professional engineers and they can solve all qoestions
4. How about packaging ?.......if machine  damaged,what should I do ?
Usually machine is packed with wooden case and standard export carton,plywood carton or as your requirement.Damage haven't happened before,if happen,we will arrange replacement
5. We haven't do business before,how can I trust your company and machine ?
We have been GOLD supplier for three years with no complaints on Alibaba.and our machine have exported to Pakistan,Russia,Brazil,Egpt,India,South Africa and other countries and have a good feedback,If you need,we can provide their company names for your reference.

6. Have you done business with Chinese before ?
 If yes,welcome to visit our factory
If not,donot worry about transportation,and we can arrange for you.
