Composition of machine
Roll forming main machine1 unit
Manual Uncoiler 1 unit
Control panel...1 unit
Hydraulic station 1 unit
Manual out table. 2 unit
Spare tools...One box
Details of each composition

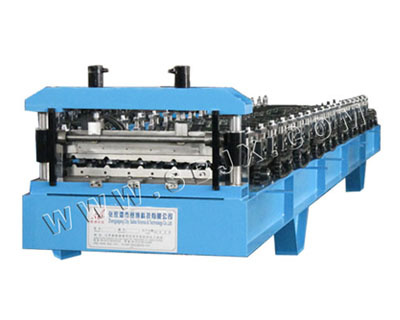

A: Roll forming main machine
1: Coil width: 1250mm effective width: 1050mm
2: Working speed: 30m/min (not contain cutting)
3: Roll station: 18stations
4: Material of roller: Cr45 steel, polished and coated with chrome
5: Material of main shaft: 45forge steel diameter roller: 85mm
6: Main power: 7.5KW machine adopt servo motor
7: Forming thickness: 0.4mm0.8mm color steel and galvanized steel
8: Transmission: By single Chains 1.2 inch
9: Feeding and guide: Surface polished and coated with chrome
10: Machine adopt protect cover
11: Machine adopt new station with chrome (at the up of each station have dial)
12: Size of machine: 9000x1400x1200(mm) L x W x H need 1x40GP container
13: Weight: About 6500Kgs
14: Color of machine: Blue
15: Machine should be with four legs (made from metal) in 350mm
16: Cutting:
(1) Motorized Pre-cutting: It is used when changing the coil of raw material; It can cut the coil rapidly and time-saving.
(2) Hydraulic Cutting after forming: Cut the sheet after roll forming to required length
(3) Cutting motion: The main machine automatically stops and the cutting will take place. After the cutting, the main machine will automatically start.
(4) Material of blade: CR12with heat treatment
(5) Length measuring: Automatic length measuring
(6) Tolerance of length: +/- 1.5mm
B. Uncoiler
Dimensions: 1700mm*1000mm*800mm
Width of feeding: 1250mm
Capability: 5 Ton
Inter diameter: 610mm
Mode of expand &fight: Inner expand &fight by manual
Way of feeding: Manual
C: Control panel Panasonic
(1) Voltage, Frequency, Phase: 380 V, 50 Hz, 3Phase
(2) Automatic length measurement:
(3) Automatic quantity measurement
(4) Computer used to control length & quantity. Machine will automatically cut to length and stop when required quantity is achieved
(5) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: Millimeter (switched on the control panel)
D: Hydraulic station
1: Hydraulic station power: 5.5kw
2: Hydraulic pressure: 12Mpa
E: Manual out table:
(1)Jointed by 60mm*40mm tube
(2)Size: 1.5m long*0.8mwide*0.6-1mhigh
(3)One out table with two support roller
