Condition: New
Place of Origin: Guangdong, China (Mainland)
Brand Name: LYB
Model Number: Roller machine
Machine Type: Roll Forming Machine
Raw Material: Sheet / Plate Rolling
Material / Metal Processed: Stainless Steel
Power: Hydraulic
Automation: Automatic
Extra Services: Piercing & Punching
Certification: CE
Material: Metal
Usage: Ball bearing slides moulding by rolling
Electromotor Power: 11KW
Power: 380V, Three-phase, Frequency 50Hz
Contour dimension: 10700*900*800(mm)
Weight: 3(t)
Packaging & Delivery
Packaging Details: Fit for ocean ship
Delivery Detail: Within 90 working days
Specifications
1. Roll forming machine;
2. Drawer Slide Machine;
3. Production Equipment;
4. Heavy Duty Frame;
5. Low Mainten

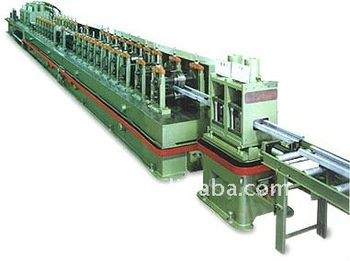

Features of Cold Roll Forming Machine:
The cold roll forming machine is mainly composed of a uncoiler, straightener, molding main machine, and cutting machine, punch, controller of electric apparatus, etc. It can be classified into chain transmission cold roll forming machine and gear-driven cold roll forming machine as per drive modes; According to external structure, gantry-type and hanging type are available.
Applications of Cold Roll Forming Machine:
The cold roll forming machine are more and more widely used in various fields. It can produce door & window rolling profiles, corrugated plates, C/Z profile steel, sandwich panels etc. For construction industries, make car door& window frames, cabinet boards, frames, girder frames for auto industries, and produce elevator profiles or highway barriers, store shelves, and electric control box frames etc.
We are a China roll forming machine manufacturer, specializing in developing and manufacturing of panel forming machine, metal roof forming machine, roof panel forming machine, sandwich panel machine and sheet metal forming machine. We are a leading exporter in the field of steel structure construction, can provide high quality roll forming machine through customer design, we also provide good after sale service and installation in customer needs. We are Chinese forming machine supplier, our metal forming equipment is also for making steel tile, C and Z purlin, steel plate, door panel, floor deck, spiral duct and wave panel. Our cold formed profile equipment is of stable performance, high production yield and easy operation, we sure to provide quality and low price roll forming machine for you. Warmly welcome to visit our factory and we are looking forward to cooperating with you for mutual benefit. Features of Cold Roll Forming Machine:
The cold roll forming machine is mainly composed of a uncoiler, straightener, molding main machine, and cutting machine, punch, controller of electric apparatus, etc. It can be classified into chain transmission cold roll forming machine and gear-driven cold roll forming machine as per drive modes; According to external structure, gantry-type and hanging type are available.
Applications of Cold Roll Forming Machine:
The cold roll forming machine are more and more widely used in various fields. It can produce door & window rolling profiles, corrugated plates, C/Z profile steel, sandwich panels etc. For construction industries, make car door& window frames, cabinet boards, frames, girder frames for auto industries, and produce elevator profiles or highway barriers, store shelves, and electric control box frames etc.
| Main parameters |
| power supply | 380V | three-phase | 50HZ |
| motor power | 11kw |
| air consumptiong | 6L/min |
| weight | 5000kg |
| size | 4500*800*1800mm |
Lianyoubang Machinery Factory is a professional machinery factory engaged in the manufacture of fully automated and high-precision cold rolling molding equipments and various copper, aluminum and stainless steel sheet molding machinery, with a number of technicians of nearly 10 years of working experience. The factory has developed the slide series of machinery as follows: fully automated sliding equipment and sliding beads-loading machine, slide automated oiling machine, ball slide rail machine, semi-automated beads-loading machine, beads forming machine, slide rail testing machine, assembly production line and slide beat detector, etc.
The times, technology and market endows Lianyoubang Machinery Factory with broad space for development, the factory survives and develops with first-class quality, credibility, timely delivery and considerate services. We sincerely hope that the factory can expand the market and create more economic benefits for you.
Lianyoubang Machinery Factory insists on the purpose of "To seek development and credibility with quality". The factory dedicates to provides domestic and foreign businessmen, old and new customers with high quality products and first-class social services, so as to achieve the pursuit for satisfaction of every customer.
The company would like to cooperated with the colleagues of the industry together to created a more brilliant future in the new century.
