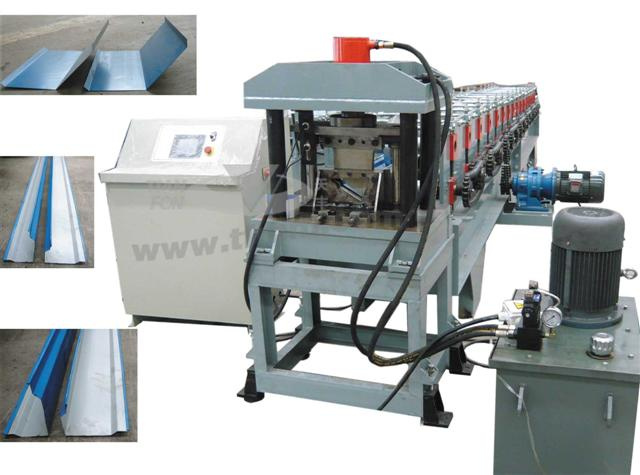

Main Parameter:
1. Steel Material: Q235, Prepainted coil
2. Thickness of Material: 0.4-0.8mm
3. Feeding Width Max: 355mm~557mm
4. Capacity of Decioler: 3 Ton
5. Inner Diameter of the Coiler: 500-600mmm
6. Out Diameter of the Coiler: 1200mm
7. Roll Forming Steps: About 16 steps
8. Power of Main Motor: 3 Kw
9. Roll Forming Speed Max: 15m/min
Machine Process:
Manual Decoiler ---- Feeding Guide ---- Roll Forming ---- Length Measuring --- Hydraulic Cutting ---Runout table
Xinxiang Tianfeng Machinery Manufacture Co., Ltd a leading manufacturer for steel plate coiling machinery, cold-bending & rolling steel plate shaping machineries and automatic production lines. The products are mainly used in steel structure industry for producing C&Z type purlin, colored wall and floor protecting steel plate, thermal insulating plate and load-bearing plate of buildings, and other complementary thin wall cold-bending shaped seel plates, expressway railings, colorful decorating and protecting steel plates for high-grade steel structure residences.
