Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
Voltage: |
380V *3 Phase* 50Hz or as Per The Customer's Requi |
Forming Speed: |
About 12-30m/Min |
Usage: |
Roof / Buidings |
Forging Forming Method: |
Mold Forging |
Product Description

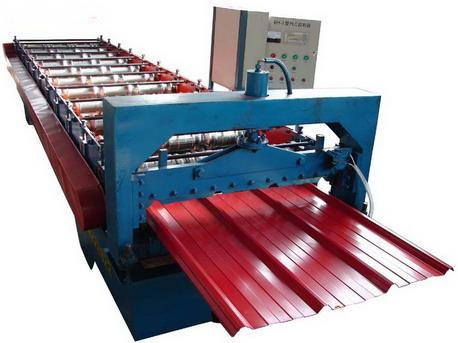

Glazed tile Roll Forming Machine: Configurations: Manual Uncoiler, Guiding Platform, Coil Strip Leveler, Main Machine Of Roll Forming, Electro-Motor, Cutting Device, Hydraulic Station, PLC Control, Supporter Table.
Control System: PLC Panasonic Inverter
Main Frame: 450mm H-Beam
Main Power: 18.5 kw
Pump Power: 15 kw
Power Supply: 380V, 3-Phase, 50Hz
Forming Speed: 10m/min
Roll Station: 27 stands
Roller Diameter: 95mm
Hydraulic Pressure: 18-20MPa
Forming Size: 688mm
Feeding Thickness: 0.3-0.8mm
Feeding Width: 1000mm
Backboard Thickness: 22mm
Chain Size: 66mm
Cutter Standard: Cr12
Roller Standard: Cr12
Cr-Plating Size: 0.05mm
Overall Size: 15000× 1200× 1100mm
Total Weight: 19T
Main power |
5.5KW |
Roll station |
Upper 18stations; Down 18 stations |
Size of roll forming machine |
About 9.4m*1.65m*1.2m |
Diameter of shaft |
76mm |
Thickness of formed steel |
0.3mm-0.8mm |
Width of raw material |
1250mm (can depend on client request) |
Material of the roller |
45#forge steel, machined with numerical control, polished and coated with chrome, surface with 0.05mm |
Hydraulic power |
4KW |
Computer adopt PLC |
Panasonic |
Computer operating board |
Touch screen |
Length tolerance |
+/-1.5mm |
Working speed |
12-30m/min(not including cutting) |
Hydraulic pressure |
12Mpa |
