Fully Automatic Guard Railway Roll Forming Machines

Fully Automatic Guard Railway Roll Forming Machines
Price: US $ 89500-98500set
Trade Terms: FOB,EXW,CIF
Min Order: 1set
Pay Type: L/C,T/T

Guard Railway Roll Forming Machine


After-sale Service
1. The warranty of the machine is one year after the client receives the machine. Within the one year, we will courier the replacement parts to the client free of charge.
2. We offer technical support for the entire life of our machines.
3. We can send our technicians to install and train the workers in the clients' factories.



Main Components
1. Main machine
2. Manual/hydraulic decoiler
3.Hydraulic system
4. PLC computer controlling system
5.Forming cutter
6. Run out table
7. User's manual in English




WUXI SUHANG  MACHINERY CO.,LTD is a professional roll forming machine manufacturer based in China. The wide range of products we offer includes PU foaming machine, construction roof panel forming machine, tile roll forming machine, door roll forming machine, C purlin machine, stud machine, and more.

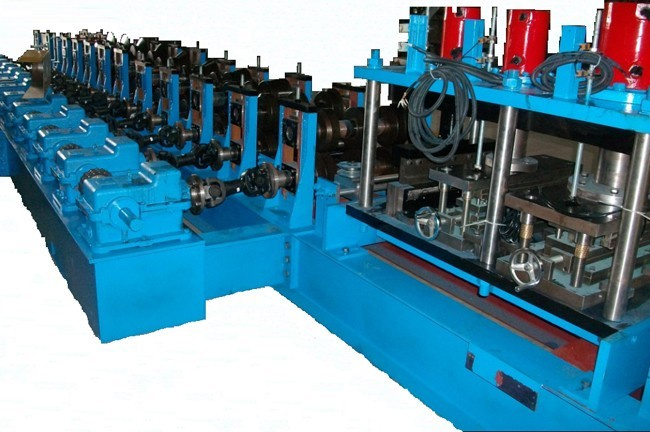

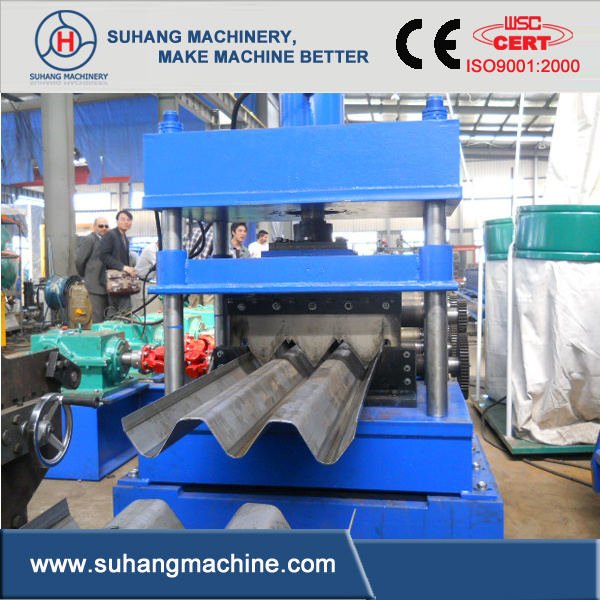

Machine Picture





Goods Delivery





Number

Items

Unit\Type

RF-RC

1

Steel Thickness

mm

2-4

2

Forming Speed

m/min

8-12

3

Roller stands

stand

16

4

Roller Material

 45# steel, coated with chrome

5

Main Motor Power

Kw

55

6

Hydraulic cutting Power

Kw

7.5

7

Hydraulic pressure

Mpa

12

8

Power Supply

 380V, 50HZ,3 phase

9

Tolerance

mm

1.5

10

Material of cutting

 Cr12

11

Control system

 PLC with touch screen

12

Machine net weight

T

20

Prod Model: RF-RC
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Name: Guard Railway Roll Forming Machine
Model: RF-RC
Place Of Orgin: Wuxi, China
Package: Film and Steel
Control System: PLC with Touch Screen
Roller Stands: 16 Stands
Forming Speed: 8-12m/Min
Roller Material: 45# Steel, Coated with Chrome
Delivery Time: 45 Days After Deposit
Forging Forming Method: Mold Forging
Wuxi Suhang Machinery Manufacturing Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.

Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.

Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.

Main product: C Purlin Roll Forming Machine; Z Purlin Roll Forming Machine; C/Z Iinterchangeable Purlin Roll Forming Machine Standing Seam Forming Machine; Bemo Sheet Forming Machine; Cold Roll Forming Machine; Roof Deck Forming Machine; Floor Deck Forming Machine; Guardrail Forming Machine; Glazed Tile Forming Machine; Corrugated Forming Machine; Double Layer Forming Machine; K Span Forming Machine; Hat Purlin Forming Machine; Hydraulic Curving Machine; Roller Shutter Production Line; Garage Door Production Line; Tapered Sheet Forming Machine, welcome to visit our factory!
