Forklift Parts, Forklift Attachments Steel Rotator Paper Roll Clamp

Forklift Parts, Forklift Attachments Steel Rotator Paper Roll Clamp
Price: Negotiable/Piece
Trade Terms: FOB,EXW,CIF
Min Order: 1set
Pay Type: L/C,T/T

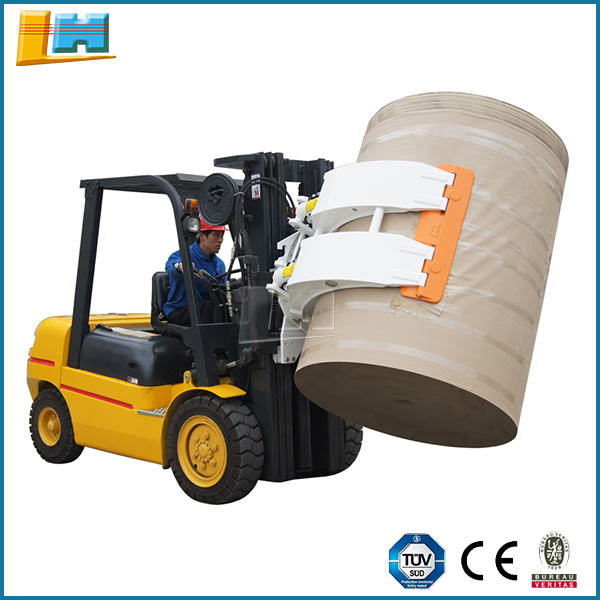

LH Forklift Steel Paper Roll Clamp





Funtions & Applications





Designed for mills, warehouses, printers, newspaper publishers and converters.





Features:



1, Rational designed, compact structure, excellent driver visibility, easy operating, improve work efficiency.



2, Thin arm profile and smooth arm contour easies roll breakout and permits close stacking.



3, Contact pads with integral casting structure, abrasion resistance, long service life. Contact pads surface      reasonable, provide the best clamping friction.



4, Continuous 360`rotation, any angle position of lock function, revolving positing 90` or 180 .



5,  Hydraulic retention of cylinder valves is to ensure reliable clamping of long distance transportation.

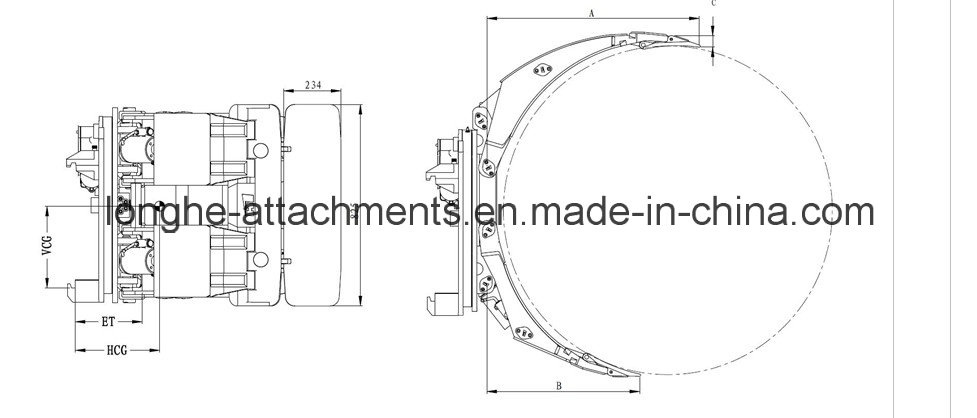

Capacity (kg) Roll Range (mmCatalog Order No.TypeMounting ClassMounting AngleLong Arm Thickness   A        (mm)Short Arm Length       B         (mm)Long Arm Thickness     C        (mm)Vertical Center of Gravity    VCG      (mm)Weight (kg) Effective Thickness    ET         (mm)Horizontal Center of Gravity     HCG      (mm)
 1200410-1300  ZJJ12D-B001II 820 570 45 280 390 150 250
1700750-1810ZJJ17D-C001AIII117579585405880256345
1700400-1810ZJJ17D-C002BIII117579585405886256345
2000530-1500ZJJ20D-B004/C004AII/III95577595343768205/256304
2000250-1500ZJJ20D-B005/C005BII/III95577595343782205/304307
2000630-1600ZJJ20D-B006/C006AII/III95577595343765205/256301
2000350-1600ZJJ20D-B007/C007BII/III95577595343775205/256304
2000330-1350ZJJ20D-B020/C020BII/III83555060343730256307
2000630-1350ZJJ20D-B021/C021AII/III83555060343720256307
2000250-1300ZJJ20D-B024/C024BII/III83555060343732256307
2000600-1300ZJJ20D-B025/C025AII/III83555060343722256307
2700590-1350ZJJ27D-C002AIII85057065343752197272
2700310-1350ZJJ27D-C003BIII85057065343759197272
2700250-1520ZJJ27D-C004BIII95568550343823197307
2700560-1520ZJJ27D-C005AIII95568550343875197307
2700250-1620ZJJ27D-C006AIII103085650343895197307
2700560-1620ZJJ27D-C07BIII103085650343830197307
 3500 490-1520 ZJJ35D-C001/D001 A III/IV 1000 772 65 5001205  221 320
 3500250-1520  ZJJ35D-C002/D002 BIII/IV  01000  77265  5001215  221320





Prod Model: ZJJ
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Item: Paper Roll Clamp
Capacity: 2000kgs
Type: B
Mounting Class: II
Monting Angle: 0 Degree
Long Arm Length: 825mm
Short Arm Length: 570mm
Long Arm Thickness: 45mm
Vcg: 343mm
Weight: 677kgs
LH supplies different kinds of products. High quality and favorable price. We're pleased to get your Inquiry and we will come back to as soon as possible. We stick to the principle of "quality first, service first, continuous improvement and innovation to meet the customers" for the management and "zero defect, zero complaints" as the quality objective.

We are specialized in designing, manufacturing and selling forklift forks (ISO/FEM standard forks, blank forks, pin type forks, straight forks, big section forks and special forks), forklift parts, forklift attachments (mechanical and hydraulic), engineering equipment attachments, agricultural equipment attachments, and automobile parts.

Our company has modern and professional manufacturing and testing equipment. Counting on solid technical strength, reliable process, ERP management software from SAP, reliable quality, excellent service, strict management, and ISO9001 Quality Management System Authentication, Fujian Longji is competitive. Our products have been exported to more than 50 countries and regions, such as Australia, Sweden, Germany, the UK and America, and have won the recognition and trust from domestic and international customers.

Located in Yongding Industry Area, Fujian, China, Fujian Longji Mechanical Equipment Manufacturing Co., Ltd. Occupies an area of 70, 000 square meters with a total investment of 146 million Yuan. With the tenet of "A journey of a thousand miles begins with a single step and pursuit is endless", we will always urge ourselves ahead. We sincerely treat every customer as our closest relative and best friend and are dedicated to providing perfect products. "German quality, Made in Longji" is our principle.
