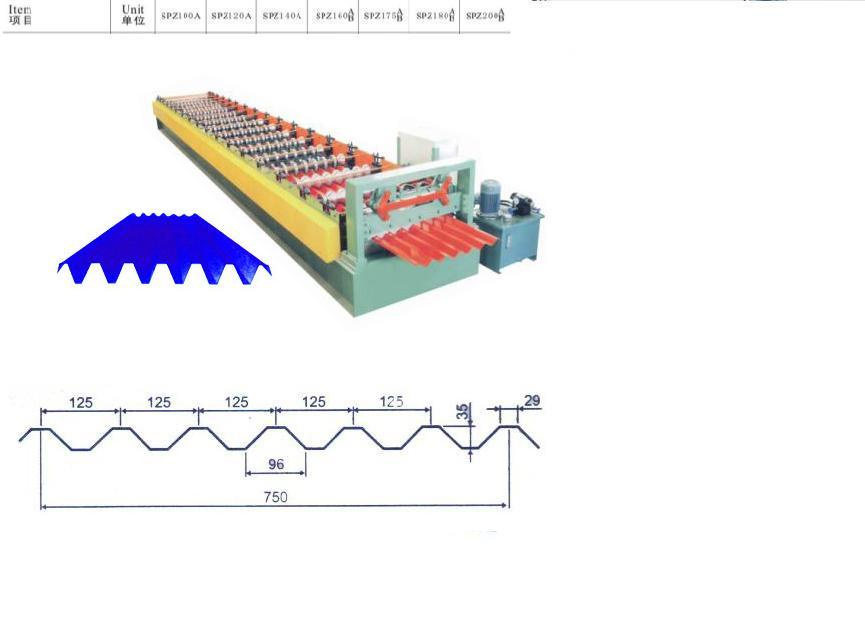

Product Description
1. The Chart of Process Flow
Decoiling--active feeding--roll forming--measuring length--cutting to length--product to stand.
2. Main Equipment
Decoiler, main forming machine, hydraulic cutting, product stand, hydraulic system, electric system.
3. Technical Parameters
1) Main forming machine
A. Number of forming steps: 16
B. Material of shaft: 45# steel adjustable treatment. Outer diameter: 70mm
C. Material of roller: 15 GCR bearing steel treatment HRC58-60
D. Main motor power: 3kw
E. Forming speed: 5m/min
F. Stand: 350# steel welding
G. The plating chromium of roller surface: 0.05mm
2) Hydraulic cutter
A. Material of blade: Cr12 with quenched treatment60-62
B. Cutting system: Adopt advanced hydraulic drive, automatic cut after forming, no distortion, no waste, high safe factor (main motor stops and then cuts).
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
