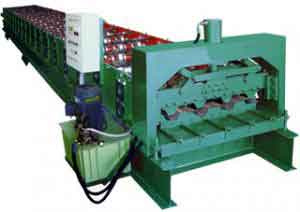

Floor Deck Roll Forming Machine (750)

Floor Deck Roll Forming Machine (750)
Price: US $ 3000-8000/Piece
Trade Terms: FOB
Min Order: 1/Piece
Pay Type: L/C,T/T
Main technical parameters:
1. Passive leak: Manual up tight, passive leak
2. Leak rack load: 7 T
3. Rack: Using 400H steel welding
4. Forming Machine-driven feeding frame Type: Side roller
5. Forming Machine Type: Wall-type chain drive
6. Shaft Diameter: 105 mm
7. Chain: 1.5-inchdouble-row
8. Forming Motor Power: 11KW Speed Reducer 2 sets
9. Forming Machine speed: 8m/min
10. Forming Machine Road Number: 26 roads
11. Roll Material: High quality steel Duan playing pieces
12. Hydraulic station motor: 4kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: Hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 --60 °
17. Rolling thickness: 1.6-2.0 mm
18. Material Expand Width: 1250mm
19. Length Length Accuracy: ± 2mm
20. The computer use of PLC, Taiwan taida, computer operation.
Suitable to process Steel plate
Width of the plate 1000mm/1200mm/1250mm
Rollers 9-11rows
Dimensions 5.8*1.55*1.51m
Power 4kw+4kw
Thickness of the plate 0.3-0.7mm
Productivity  8-10m/min
Diameter of the roller ¢70mm
Weight About 3.4T
Voltage 380V  50Hz 3pha

Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Botou Zhongteng Machinery factory supply all kinds of roll forming machine, our main production: colored steel roll forming machine, Gusset plate machinery, C/Z purlin forming machine, double decked roll forming machine, floor deck roll forming machine, glazed tile roll forming machine, ridge tile roll forming machine, Roof Panel Roll Forming Machine, shutter door roll forming machine, Cutting machine, Bending machine, etc. We have advanced technology and equipment, detection means is consummate, and developed the automatic intelligent production line for roll forming machine.
Our company has perfect after-sales service network, can provide full support to you, helping you get the most satisfactory equipment, and insure you get the device timely to solve all the problems in process. We always put the interests of customers in the first place, and put the concept through design to after-sales service, enables our products to help customers improve efficiency, reduce costs, enhance competitiveness, we will completely according to your requirements and needs to carry on the design and manufacturing, and give you the most ideal machine.
