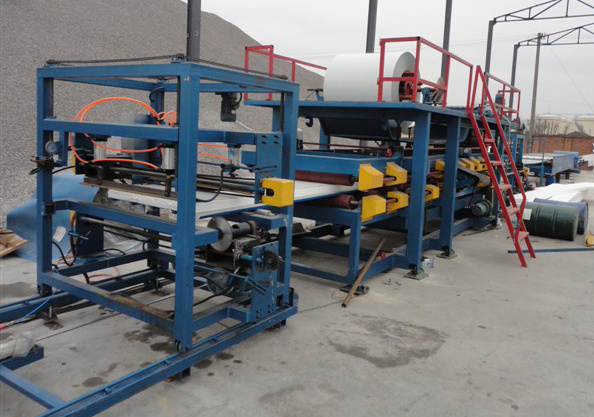

EVA sandwich forming machine
Main parameter
Composition: Frame of put material, roll forming machine, compound machine, cutting parts, frame to drag material
Size: 45000mm*3000mm*2800mm
Motor power: 32KW
Speed of produce: 0-4.05m/min
Weight: 20T
Control system: PLC, touch screen
Thickness of the plate: 0.3-0.8mm
Advantages: Flat panels no scratches, cohere firm
Power: AC380V/50-60HX
Frame of put material: Include frame and material core, weight 5-7t
Roll forming machine: Molding 13 row, axle: Diameter70mm middle plate: 12mm frame: 300 channel steel chain: 15.24mm
Composite board host: Square tube: 80*160 rubber axle: 150 19root
Cutting parts: Pneumatic walk
Process:
Passive open a book--Oriented put into material--moulding by rolling--limit length cut down--upbear material
|
Material of blade |
Cr12, heat treatment 60-62 degrees celsius |
|
Shearing system |
It is controlled by gear wheel oil pump. After filling the hydraulic oil into the hydraulic oil tank, the pumps drive the cutter machine to begin the cutting job.
The system includes a set of hydraulic tank, a set of hydraulic oil pump, two hydraulic pipes. And two sets of electromagnetism valves.
Power of the oil pump: 4kw
Hydraulic oil : 40# |
Electrical system
|
Screen display |
5.7 inches TaiDa touch screen |
|
Main computer control cabinet |
It adopts industrial computer to control. The target piece’ s length is adjustable and digit of it can be adjusted. Computed mode has two modes: automatic and manual one. The system is easy to operate and use.
Processing precision : within 1.00mm
It contains liquid crystal screen, programmer, transformer for the electronic machines and kits of every part.
Transducer brand isEURA
The seller should provide Chinese and English language screen.
|
