Dry Roll Forming Machine (Kingbo-3)

Dry Roll Forming Machine (Kingbo-3)
Price: Negotiable
Trade Terms: ocean
Min Order: 1set

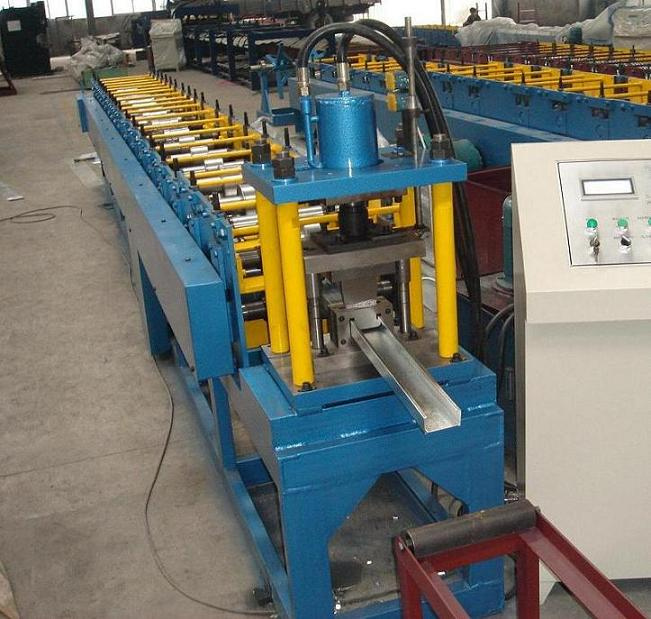

This roll forming machine mainly consists of uncoiler and its base, coil sheet guiding& adjusting device, roll forming system, embossing equipment, hydraulic post-cutting system, PLC controller, hydraulic station and run out table.

Option: Hydraulic uncoiler and safety shield
Material spec: Steel coil with yield stress of MPa 235 (33KSI)
Material thickness: 0.3-0.8mm
Forming speed: 18-22m/min
Main motor power: 5.5kw
Hydraulic power: 2.2kw

Passive uncoiler: Max capacity 2000kgs
Roller stands: About 12 groups
Roller material: High grade No. 45 steel coated with hard chrome, hardness: HRC58-62
Cutting blade material: Cr12MOV (ASTM D2) mould steel with heat treatment
Controlling system: PLC
Main machine dimension: About 6000*500*1300mm
Machine weight: About 4500kgs
Voltage: 380V, 3 Phases, 60Hz or according to customer's requirement.
Prod Model: kingbo-3
Ningbo Yinzhou Kingbo Imp&Exp Co., Ltd., is a professional manufacturer and exporter of steel Rool Forming Machine in Ningbo Zhejiang province with convenient transportation.

We are professional manufacturer of all kinds of forming machines. We have the senior technical engineers group and the best machinery and equipment production line and topping after-sales service system.

The forming machine we produced as follew:

Steel tile forming machine, steel ridge cap forming machine, steel roof/wall sheet forming machine, double layer forming machine, C/Z shap purlin of forming machine, floor decking forming machine, water falling pipe forming machine, guardrail forming machine, cold storage wall sheet forming machine, dry wall forming machine, roll shutter door forming machine, slitting line, embossing machine, pressing and bending machine and the accessories for forming machine. If you have any equipment to our special reqirements, you can provide the set resign, we will in shortest possible time in accordance with the programme of you and make plan for you.

We are sincerely looking forward to your cooperation for mutual benefits, we will provide the products with high quality and competitive price.
