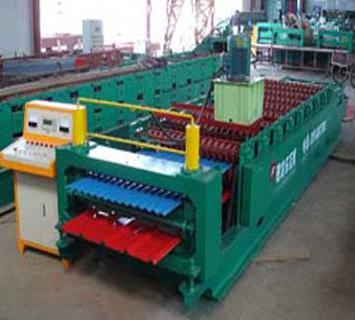

Double Sheet Roll Forming Machine (JJ840/850)

Double Sheet Roll Forming Machine (JJ840/850)
Price: Negotiable
Trade Terms: by Sea
Min Order: 1set
A. Simple structure and beautiful outlook;
B. Easy to setting and operation
C. Little noise and high working efficiency.
D. High speed and high production
E: One machine can produce two profiles
1. Profile 1.1 Feeding width: 1000mm
1.2 Effective width:   840/850mm
1.3 Material thickness: 0.3-0.8mm
2. Process flow

Decoiling--feeding---forming---cutting---production


3. Manual Decoiler 3.1 Material coil inner diameter: 450mm-700mm
3.2 Max coil width: 1200mm
3.3 Carrying capacity: 5T
4. Forming Device 4.1 Number of forming steps: 13 steps(upper) 14 steps(below)
4.2 Shaft material: 45# steel with harden treatment, outer diameter 75mm
4.3 Roller material: 45# steel
4.4 Main motor power: 4kw
4.5 Forming speed: 8-10m/min
4.6 Voltage: 380V/50Hz/3 phrase
5. Cutting Device 5.1 hydraulic cutter
5.2 blade, puncher and mold material: Cr12 steel with quenched treated 60-62C
5.3 cutting system: advanced hydraulic drive, automatic cutting after forming, no distorting or wasting, high level safety factor.
6. Controlling   Device 6.1 screen: 5.7 inch Taida screen from Taiwan
6.2 PLC: Taida DVP14ES from Taiwan
6.3 coder: Japanese Omron E6C2

7. Hydraulic 7.1 Advanced hydraulic system from Taiwan
7.2 Power: 3kw
8. Simple output frame simple frame weld bu #8 U bar, 1 pcs of 3m
9. Payment and    terms Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 20-25 days after receipt of deposit.
10. Warranty One year, and we will provide the technical support for the whole life.

11. Packing
Container packing of the line suitable for overseas shipping
The subject can be loaded in one 40’ GPcontainer.
Packing style: Naked and covered by plastic film, spare parts and some small parts packed in wooden box.
12. Assemble, train the machine It is free to assemble and train the machine, but the buyer must pay for the round-trip airplane ticket, and arrange accommodation during that time


13. Maintain
It is free to maintain the machine the first year after you buying, include changing the main components. The first year hence, you will pay for our technician $50/day to maintain the machine. And its component is not free, if you need to get it from us. (The buyer should supply airplane ticket and accommodation, if he need maintain).

Prod Model: JJ840/850
Markets: North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe
Type: Metal Rolling&Drawing Machine
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!

To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.

Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.

Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
