Double-Deck Forming Machine, features save space, easy operate, high quality, low noise, can be made according to customers' requests.

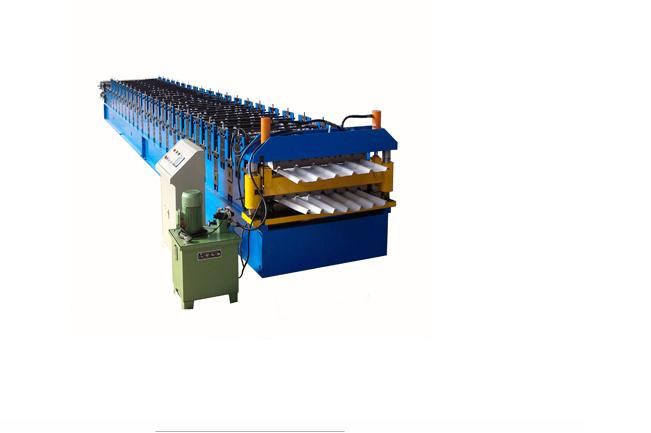

Double-layer Roof & Wall Panel Roll Forming Machine
1. Suitable to process: Colored Steel plate, galvanized board
2. Width of the plate: 1250mm
3. Rollers: Upper level 12 rows, Down level 16 rows
4. Rolling material: Forging Steel 45#
5. Rolling galvanization thickness: 0.05 mm
6. Material of the cutting blade: Cr12
7. Hydraulic oil: 40#
8. Dimensions: 7.8*1.55*1.71m
9. Power: 4+4kw
10. Thickness of the plate: 0.3-0.6mm
11. Productivity: 8-10m/min
12. Diameter of the roller: 70mm
13. Weight: About 6.5T
14. Voltage: 380V 50Hz
15. Processing precision: Within 1.00mm
16. Equipment components: Roll forming machine, compture control system, hydraulic control system, cutting
17. Transportation: One complate equipment need one 40feet container to hold
18. Payment term: 30%deposit, and balance before delivery
19. Standard components: Chain 1 PCS, Hydraulic oil pipes: 2 PCS, electromagnetism valves 1 PCS. Limit switch: 2 PCS
20. This machine is compose of feeding table, forming machine, forming cutting device, hydraulic system, computer control system, discharge table.
Optional devices have manual uncoiler, hydraulic uncoiler, aoto stacker and so on. (Optional)
21. Our products are widely used in various industral factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice apparance and durable.
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
