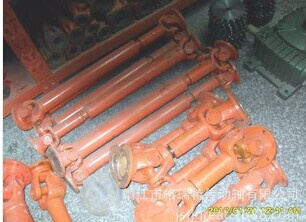

Coupling SWC65
| Price: |
US $ 50/Piece |
| Trade Terms: |
FOB,CIF |
| Min Order: |
1/Piece |
| Pay Type: |
T/T |
ISBN: JB/T5513-91 type: Universal shaft coupling
Model: SWC65 nominal torque: 250 (N. M)
Shaft: 10 dimensions: 65 (mm) allowable speed: 5000 (r/m)
Balance: Balance
Model | Type
Data
Item | SWC
165 | SWC
180 | SWC
200 | SWC
225 | SWC
250 | SWC
265 | SWC
285 | SWC
315 | SWC
350 | SWC
390 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| A | L | 740 | 800 | 900 | 1000 | 1060 | 1120 | 1270 | 1390 | 1520 | 1530 |
| Lv | 100 | 100 | 120 | 140 | 140 | 140 | 140 | 140 | 150 | 170 |
| m(kg) | 65 | 83 | 115 | 152 | 219 | 260 | 311 | 432 | 610 | 804 |
| B | L | 480 | 530 | 590 | 640 | 730 | 790 | 840 | 930 | 1000 | 1010 |
| m(kg) | 44 | 60 | 85 | 110 | 160 | 180 | 226 | 320 | 440 | 590 |
| C | L | 380 | 420 | 480 | 500 | 560 | 600 | 640 | 720 | 780 | 860 |
| m(kg) | 35 | 48 | 66 | 90 | 130.0 | 160 | 189 | 270 | 355 | 510 |
| D | L | 520 | 580 | 620 | 690 | 760.0 | 810 | 860 | 970 | 1030 | 1120 |
| m(kg) | 48 | 65 | 90 | 120 | 173.0 | 220 | 250 | 355 | 485 | 665 |
| E | L | 800 | 850 | 940 | 1050 | 1120 | 1180 | 1320 | 1440 | 1550 | 1710 |
| Lv | 100 | 100 | 120 | 140 | 140.0 | 140 | 140 | 140 | 150 | 170 |
| m(kg) | 70 | 92 | 126 | 168 | 238.0 | 280 | 340 | 472 | 660 | 886 |
| Tn(kN.m) | 16 | 22.4 | 31.5 | 40 | 63 | 80 | 90 | 125 | 180 | 250 |
| Tf(kN.m) | 8 | 11.2 | 16 | 20 | 31.5 | 40 | 45 | 63 | 90 | 125 |
| β(°) | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 | 15 |
| D | 160 | 180 | 200 | 225 | 250 | 265 | 285 | 315 | 390 | 440 |
| Df | 160 | 180 | 200 | 225 | 250 | 265 | 285 | 315 | 390 | 440 |
| D1 | 137 | 155 | 170 | 196 | 218 | 233 | 245 | 280 | 345 | 390 |
| D2(H9) | 100 | 105 | 120 | 135 | 150 | 160 | 170 | 185 | 235 | 255 |
| D3 | 108 | 114 | 140 | 159 | 168 | 180 | 194 | 219 | 273 | 299 |
| Lm | 95 | 105 | 110 | 125 | 140 | 150 | 160 | 180 | 215 | 260 |
| k | 16 | 17 | 18 | 20 | 25 | 25 | 27 | 32 | 40 | 42 |
| t | 4 | 5 | 5 | 5 | 6 | 6 | 7 | 8 | 8.0 | 10.0 |
| n | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 10 | 10 | 16 |
| d | 15 | 17 | 17 | 17 | 19 | 19 | 21 | 23 | 25 | 28 |
| b | 20 | 24 | 32 | 32 | 40 | 40 | 40 | 40 | 70 | 80 |
| g | 6.0 | 7.0 | 9.0 | 9.0 | 12.5 | 12.5 | 12.5 | 15.0 | 18.0 | 20.0 |
| MI(kg) | 2.57 | 3 | 3.85 | 3.85 | 5.17 | 6 | 6.75 | 8.25 | 13 | 18.5 |
Flange
bolt | Size | M14 | M16 | M16 | M16 | M18 | M18 | M20 | M22 | M24 | M27 |
| Tightening torque (Nm) | 180 | 270 | 270 | 270 | 372 | 372 | 526 | 710 | 906 | 1340 |
| Prod Model: |
SWC65 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Isbn: |
Jb/T5513-91 |
| Load: |
Drive Shaft |
| Stiffness & Flexibility: |
Flexible Shaft |
| Axis Shape: |
Straight Shaft |
| Shaft Shape: |
Real Axis |
