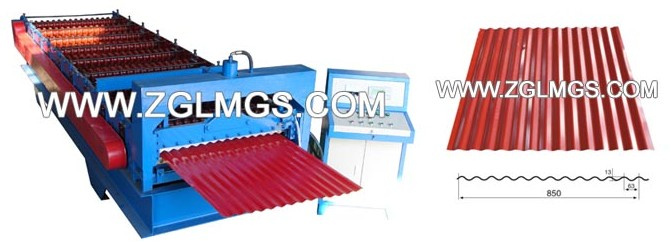

| Prod Model: |
LM-850 |
| Markets: |
North America,South America,Eastern Europe,Southeast Asia,Africa,Oceania,Mid East,Eastern Asia,Western Europe |
| Type: |
Metal Rolling&Drawing Machine |
Product Description
Producing flow:
Decoiler---Sheet guiding---roll forming---measure length---cutting---panels to the supporter
Main technical parameter
Suitable to process: Colored armor plate with the bending intensity of 235mpa
Thickness of the plate: 0.3mm - 0.8mm
Width of the plate: 1000mm
Productivity: 10 m/min
Rollers: 11 rows
Diameter of the roller: 70mm
Dimensions( main structure): 6400mm*1700mm*1500mm
Weight: 2700kg
Power: 3kw+3kw
Effective area for use: 850mm
Liming Stamping Form Machine Manufactured Co., is a leading manufacturer for steel plate coiling machinery, roll-forming and automatic production lines. The products are mainly used in steel structure industry for producing C&Z shape purlin, load-bearing plate of buildings, wall and roof protective structure colorful steel plate, thermal insulation; Colorful decorating and protecting steel plates for high-grade steel structure residences; Environment industry anode plate and kathode plate lines for removing dust; Traffic-transport industry freeway guardrail plate, vehicle roll-forming materials; Logistics. Goods shelf pillar, holding beam; Cable bridge, Cabinet pillar and others collorary thin wall roll-forming materials serials-such as goods shelf board, kinds of cabinet screen plate. Then, it can also supply kinds of line of uncoiler, leveler, slitting recoiler, cut-to-length shear stacker.
Liming has advanced production equipment. Engineering personnel and technicians of Bohai are rich in experience of designing, developing, and manufacturing of machineries, They pay close attention to and keep up with the developing trend of technologies and adopt new technologies in the manufacturing of our machinery products, to keep them competitiveness. The products are characteristic of high efficiency, high flexibility and low production cost.
