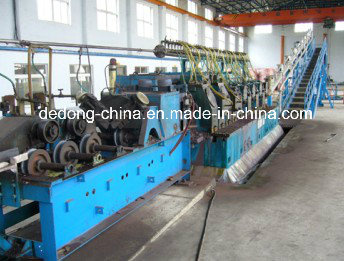

Copper Rod Continuous Casting and Rolling Line
I. Application

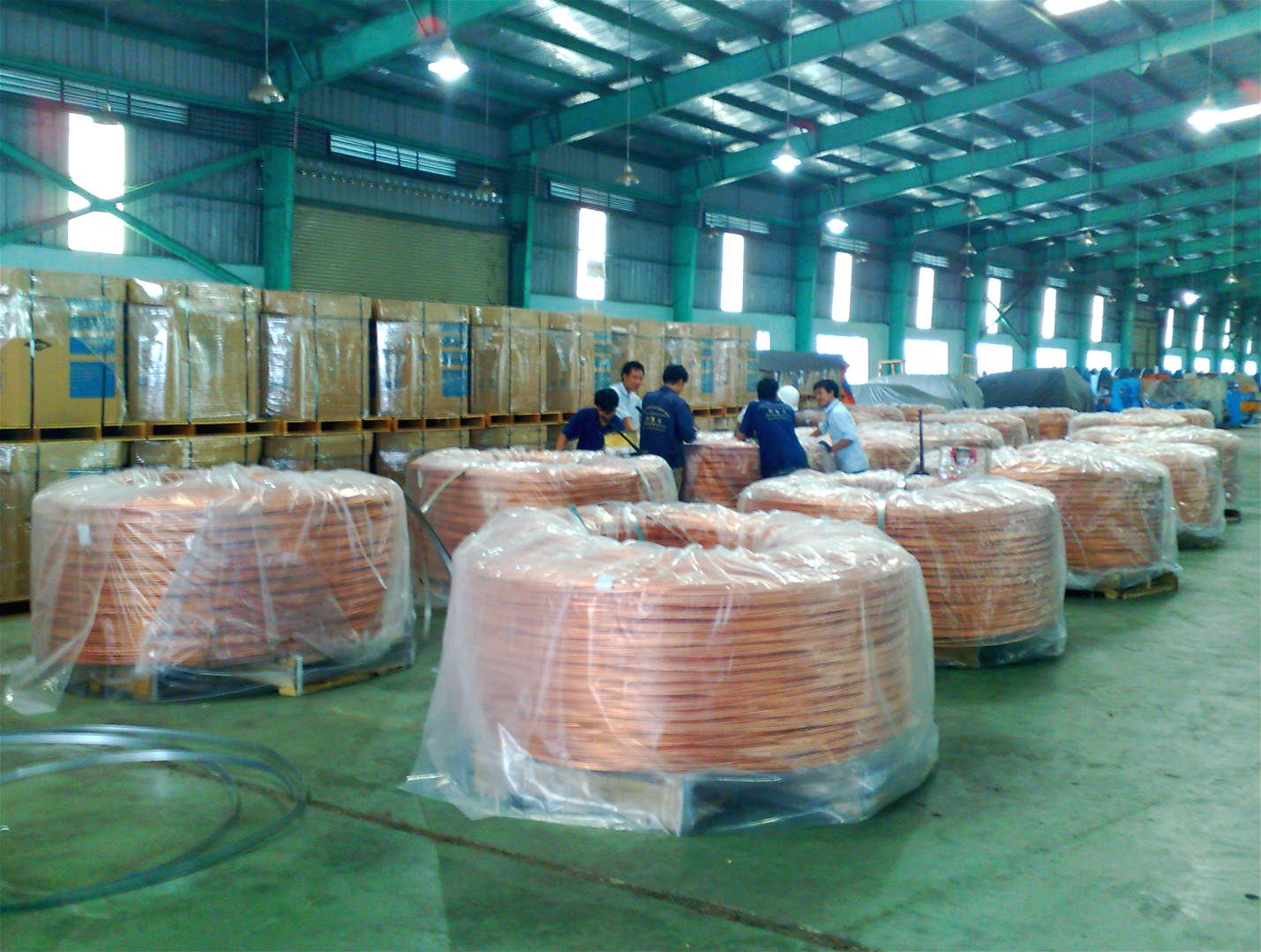

This machine is applied to manufacture the low oxygen, bright copper rods with dia. 8, 10 and 12mm by adopting a technology of continuous casting and rolling. Red copper scrap is chosen as raw materials. This production line is composed of the following parts: stationary reverberatory furnace, 5-wheel continuous casting machine, front haul-off machine, automatic scrolling shearer, straightening & edge shaver, cast bar brushing machine, continuous rolling machine, orbital rod coiler and electrical control system, etc.
II.Main Technical Data
1. Dia. of copper rod ø8 mm
2. Production capacity 12-16T/hour
3. Speed of ingots out 6.4-15.56 m/min
4. Finished rolling speed Vmax=9.8m/s
5. Diameter of crystallizing wheel φ1800mm
6. Crystal wheel driven motor Y112M-4 4KW 1440r/min(AC Frequency converter)
7. Continuous rolling mill motor Z4-355-12 450KW 1000r/min(With speed regulator)
8. No. of rolling stand 12 stands (2Horizontal roller, 2 Vertical roller, 8'Y' type transmission stand)
9. Rod coiling type Centrifuge head-swinging
10. Roller nominal diameter A255mm
11. Coiling diameter Φ1200-Φ1900mm
12. Coiling weight 3.0-5.0 t
13. Total power ~650KW(not include furnace)
14. Total weight 82 tons (not include the furnace)
15.Overall dimensions ~41.7×7.8×6.1m (not include furnaces and recycling cooling and filtering system)
For more information, please feel free to contact us at any time!
The Deyang Dedong Electrotechnical Machinery Manufacture Co., Ltd is located in Deyang city, Sichuan Province where is a processing center with heavy industries. The company has been engaging in manufacture of specialized wire & cable equipments for 35 years. It is a private joint-stock enterprise which puts design, machining, manufacture, installation and commissioning into integrity.
Getting support from its technicians with high quality and high academic credentials and teams with advanced management ideas and market administration ability, with the persistent standpoint of market-oriented development, the company strives for promptly providing customers with high-tech products and services characterized as "prompt services for new products with super quality and competitive price".
Company's machining capabilities cover an extensive range, with a well-equipped machining workshop, assembly, assembly workshop, welding workshop, heat treatment workshop, tool workshop, gear processing workshops, and fixture workshop attached to the production department, the annual output value reached more than 30 million.
"Dedong Electrotechnical", which is the council member unit of China electrotechnical professional association, passed through the certification of national GB/T19001-2000 quality management system and obtained an honorary title of Sichuan quality credibility enterprise in 2007. The company owns an independent export right.
The main products in our company have aluminum, alloy/copper rod continuous casting and rolling line, aluminum/copper wire drawing machine, wire stranding machine, continuous lead sheathing extruder etc., which have been exported to many countries, gotten high evaluations from customers all over the world.
