8mm Copper Rod Continuous Casting & Rolling Line
I. Application
This machine is applied to manufacture ø8mm bright copper rod by adopting a technology of continuous casting and rolling. Red copper scrap is chosen as raw materials. This production line is composed of the following parts: stationary reverberatory furnace, 5-wheel continuous casting machine, front haul-off machine, automatic scrolling shearer, straightening & edge shaver, cast bar brushing machine,
continuous rolling machine, orbital rod coiler and electrical control system, etc.
II.Main Technical Data
1. Dia. of copper rod ø8 mm
2. Production capacity 12-16T/hour
3. Speed of ingots out 6.4-15.56 m/min
4. Finished rolling speed Vmax=9.8m/s
5. Diameter of crystallizing wheel φ1800mm
6. Crystal wheel driven motor Y112M-4 4KW 1440r/min(AC Frequency converter)
7. Continuous rolling mill motor Z4-355-12 450KW 1000r/min(With speed regulator)

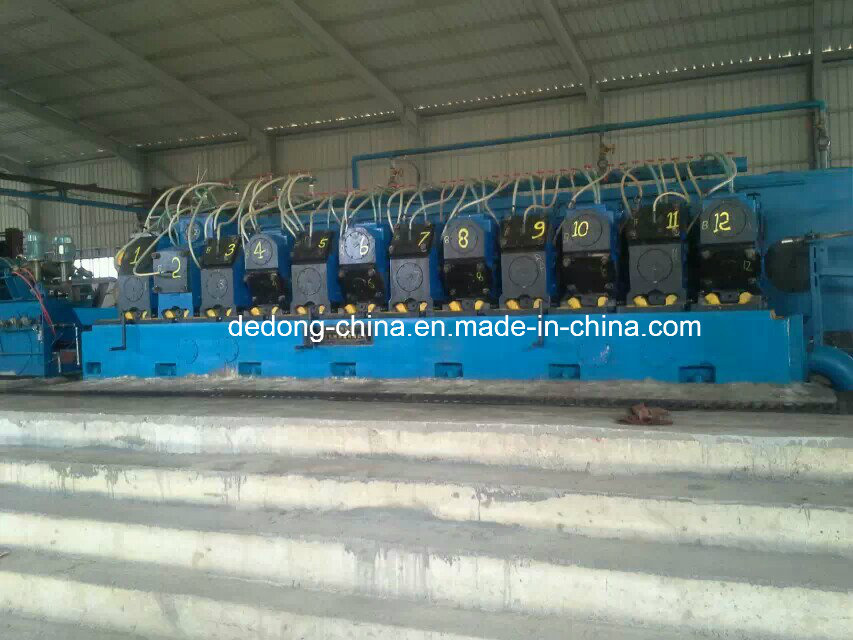

8. No. of rolling stand 12 stands (2Horizontal roller, 2 Vertical roller, 8 'Y' type transmission stand)
9. Rod coiling type Centrifuge head-swinging
10. Roller nominal diameter A255mm
11. Coiling diameter Φ1200-Φ1900mm
12. Coiling weight 3.0-5.0 t
13. Total power ~650KW(not include furnace)
14. Total weight 82 tons (not include the furnace)
15.Overall dimensions ~41.7×7.8×6.1m (not include furnaces and recycling cooling and filtering system)
III. Components Of Supply List
1. Stationary reverberatory furnace 20T one set
2. 5-wheel continuous casting machine (including 1 pc crystallization wheel) one set
3. Automatic scrolling shearer one set
4. Straightening & edge shaver one set
5. Cast bar brushing machine one set
6. Rolling mill (including one set of rollers) one set
7. Oil lubrication system for rolling machine one set
8. Emulsion lubrication system for rolling machine one set
9. Rod coiler one set
10. Electrical control system one set
11. Steel belt (for commissioning use) 200kg
For more information, please feel free to contact us.
