1. Introduction

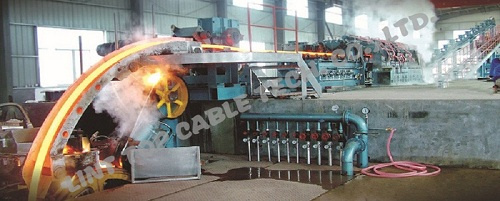

Copper Rod Continuous Casting and Rolling line is used to produce 8mm ETP copper rod or FRHC copper rod. It is equipped with different melting furnaces according to different raw material.
2. Main components
Reverberatory furnace or shaft melting furnace, rotary holding furnace, casting machine, roller shears, straightener, burr shaver, rolling mill with 12-15 stands, oil lubrication system, emulsion lubrication system, cooling and deoxidizing device for copper rod, coiler with two baskets and electric control system.
3. Technical Parameters
| Raw material | cathode or 100% scrap copper |
| Furnace | cathode: vertical melting furnace+holding furnace |
| 100% scrap copper: reverberatory furnace |
| Productivity | 5-15T/h |
| Casting bar | 1400-2300mm2 |
| Coil's weight | 3000~5000kg |
We Lint Top Cable Technology Co., Ltd, is experienced in exporting wire and cable machine to North Africa, South America, Southeast Asia, ets. The main machine including: Wire drawing machine, wire stranding machine, coiling and packing machine, testing machine, etc.
