1. Introduction

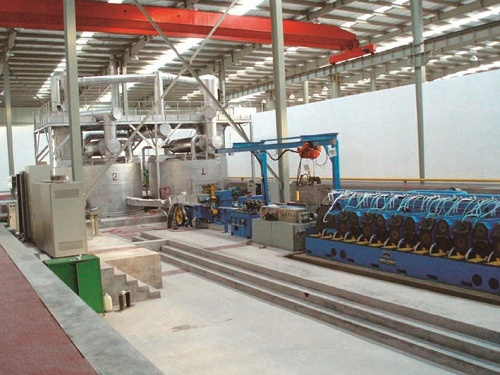

Oil-free aluminum alloy rod continuous casting and rolling line is used to produce aluminum alloy rod, such as Al-Mg alloy rod, Al-Mg-Si alloy rod(6201), Al-Ti-B alloy rod etc. The finished rod diameters can be Φ9.5mm,Φ12 mm,Φ15mm. The productivity ranges from 1.5T-4T per hour, and the cross-sectional area of the casting bar ranges from 1500 to 2400 mm². The main raw materials can be aluminum ingot as well as molten aluminum. Rod quality exceeds ASTM, DIN, BS, JS and other internationally accepted quality standards.
2. Features
2.1 Level casting and automatic casting system ensures no turbulent current, the molten aluminum feeding to casting system is oxide-free.
2.2 On-line degassing unit removes the contents of hydrogen and impurity in the molten aluminum with the small dispersed bubble by the inert gas.
2.3 Induction heater heats the casting bar before entering the rolling mill, and adjusts temperature automatically, thus achieving good electrical and mechanical properties.
2.4 Oil-free coiling system with rollers makes it possible to produce oil-free aluminum rod without the use of grease, which can save production cost and make workshop clean.
3. Technical parameter
| Diameter of aluminum rod | Φ9.5mm/Φ12.5m/Φ15mm |
| Production capacity | 1.5~4.0 T/h |
| Raw material | aluminum ingot /electrolytic aluminum |
| Furnace | aluminum ingot: vertical furnace+round holding furnace with magnetic mixer |
| electrolytic aluminum: round holding furnace with magnetic mixer |
| Casting bar | 1500-2400mm2 |
| Weight of coiled rod | 1.5-2.5T |
