Continues Casting Machine with CE certificated
Price and Equipment List for R6m, 2strands, 6meter billets CCM
NO: R62
I. Technical data
Capacity per hour: 28t-35t
Casting radius: R6m
Billet specification: 120*120, 130*130, 150*150
Strand number: Strands 2 strands
Dummy bar: Rigid dummy bar
Ladle support type: Fixed frame
Cutting way: Automatic flame cutting machine with PLC control.
Steel grade: Low alloy steel, common steel, and so on
Billet length: 6m
Control way: Oscillation, withdrawing and straightening, dummy bar deploying and retracting, cutting system (include scale system of billet length) all be controlled by PCL
Electric system: Transducer, PCL all are Siemens products, contactor is Schneider products
II. Supply cope
1. On-line equipment list
No Equipment name Unit Qty. Remark
1 Ladle tower set 1 50 tons
2 Tundish moving car PC 1
3 Tundish PC 1
4 mould PC 2 130sq
5 Mould cover set 2
6 Operating car set 2
7 Oscillation device set 2
8 Secondary cooling manifold(stainless steel) and support set 2 Stainless steel
9 Guide section for secondary cooling set 2
10 Steam drainage system in the secondary cooling system set 1

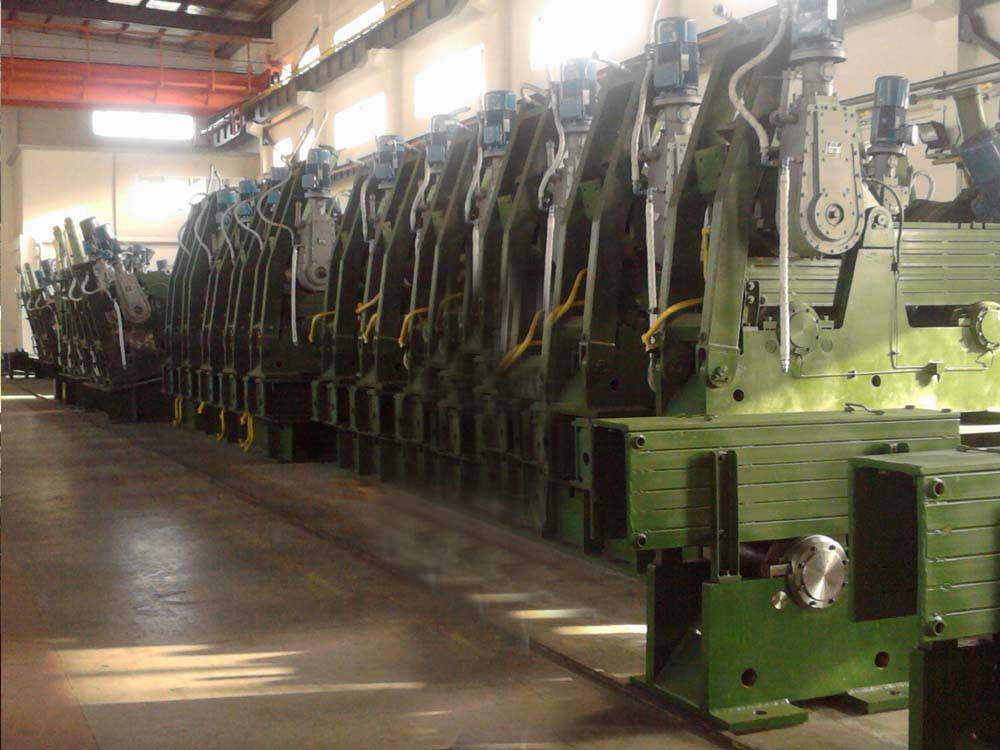

11 Withdrawal straightening machine set 2
12 Dummy bar PC 2
13 Dummy bar storage device set 2
14 Roller table before cutting group 2
15 Transmit roller table group 2
16 Discharge roller table group 2
17 Transverse pusher set 2
18 Cooling bed set 2
19 Overflow chute set 4
20 Hydraulic station system set 1
21 Cooling water distribution system set 2
22 Electrical system set 2
A Power supply conbinet set 1
B Frequency conbinet set 2
C PCL conbinet set 1
D Main operating table set 1
23 Automatic flame cutting machine set 2
24 Secondary cooling nozzle PC 120
25 Auxiliary material(pipe, cable, etc) batch 1
26 Operating platform and dummy bar storevage platform batch 1
2\Auxiliary equipment
No. Equipment name Unit Qty. Remark
1 Mould maintenance and pressure test bench set 2
2 Drainage gun PC 2
3 Cutting gun PC 2
4 Ladle heater set 1
3. Price: USD FOB Shanghai.
Lead time: 90 days
4. Payment way: 30% advance payment, 70 payment paid before date of shipment or
5. Management Installation: ACCOMMODATION AND TRANSPORTATION COSTS will be paid by buyer. Totally overse charges paid by buer.
Debugging the buyer shall compensate the experts at USD 150 per day for delaying time per engineer. The seller should be responsible for the scene testing; After normal melting the seller should be responsible to guarantee repair or change of the faulty components in 6 months
Delivery by 1 piece 40HQ container, 4 pieces 40GP container.
Shanghai Electric Heavy Machinery Co., Ltd., Are affiliated company of Shanghai Electric Group Co., Ltd. (State company, turnover 100 billion USD We have been specializing in manufacturing, export and import electrical machinery, metallurgy equipment, turn key project for more than 50 years.
Our Main Products and Services
1. Metallurgy Equipment
Medium frequency induction furnace, houlding furnace, steel bar induction heating furnace, Ladle refinery furnace; Electric arc furnace(EAF, VD, VOD, ad/DC Eaf, vacuum electric arc furnace), Continues casting machine(CCM), rolling mills, vacuum furnace, cooling tower systems, dust collectors
2. AC / DC motors, pumps, vertical hollow shaft motor(VHS IEC strand and NEMA standard), vertical turbine pump, alternators/diesel generator sets, MW power generators, HFO (heavy fuel oil generator ) generators. Investment casting accessory; Insulation Materials
3. Office Products, Arts and Crafts products, hotel leather products, leather stationery.
4. Import and Export Agent or Purchase Agent/Office 2%-5% cost.
0UR products have been sold to and distributed in more than 50 countries and regions. SEMC(SMC) warmly welcomes customers from at home and abroad to further develop business relationships and partnerships for a prosperous future.
