1, Roll froming machine: Fast
2, Little error
3, Quality is stable
Roll forming machine technical parameters:
1. Hydraulic loading frame
2. Leak rack load: 6T
3. Rack: Using 300H steel welding
4. Forming Machine-driven feeding frame forms: Lateral slide-style
5. Forming Machine Type: Wall-type chain drive
6. Shaft Diameter: 72mm solid shaft
7. Chain: 1 inch sinle.
8. Forming Motor Power: 3KW Speed Reducer
9. Forming Machine speed: 8m/min
10. Forming Machine Road Number: 11
11. Roll Material: High quality steel forged playing pieces
12. Hydraulic station motor: 3kw
13. Hydraulic Pump Station: Gear pump
14. Cutting method: Hydraulic shear
15. Scissors film forming material: Cr12
16. Shearing blade Heat treatment: HRC58 ° -60 °
17. Rolling thickness: 0.3-0.8 mm
18. Material Expand Width: 1000mm
19. Length Accuracy: ± 2mm
20. The computer use of PLC, computer operation

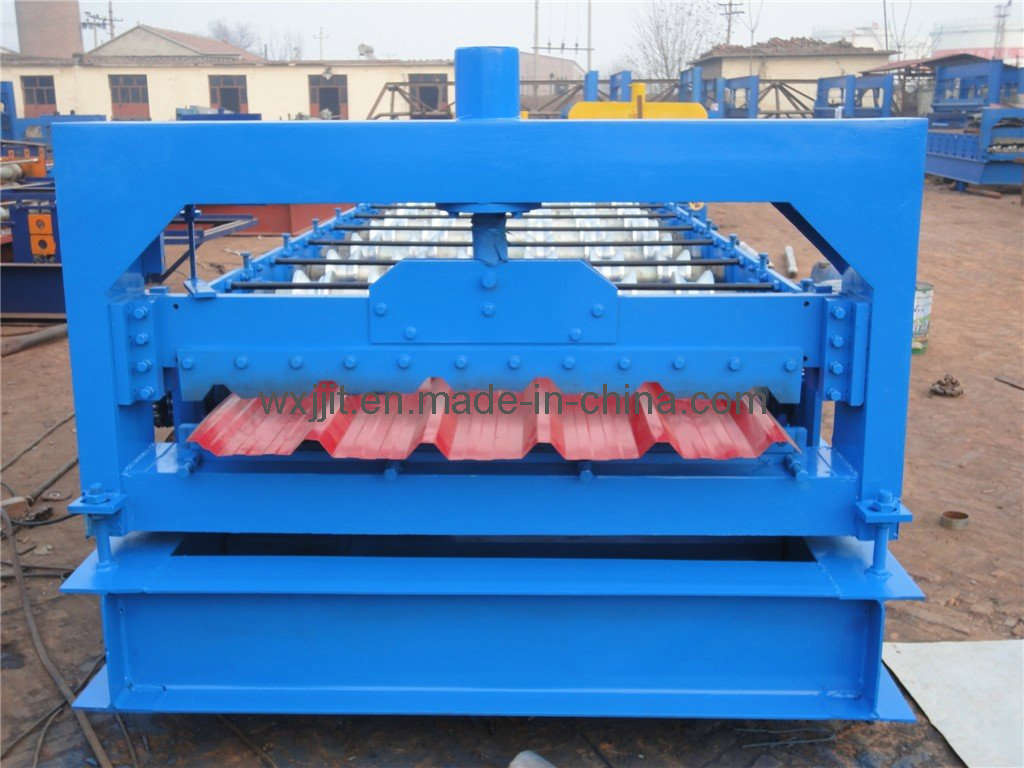

Model Number: JJM-840
Type: Tile Forming Machine
Tile Type: Colored Steel
Use: Roof
Wuxi Jing Jia International Trade Co., Ltd. is located by the coast of beautiful Tai Lake of the Yangtze River Delta, Wuxi, with Shanghai-Nanjing Railway, Xin-Chang Railway, Beijing-Shanghai Expressway, Shanghai-Nanjing Expressway and Huyi Expressway converging and the Grand Canal (China) passing through, only 100m from National Highway 312. It is a modern technology enterprise integrating R&D, manufacture, technical service and import & export trade. Our tenet is "Build Credit Once, Serve You Forever!
To adapt to the development of domestic and foreign steel structure, the company has been engaged in production of steel structure roofs and wall containment channeled steel plate equipment for years. It is also committed to the R&D of new products. We have developed many series of channeled steel plate production lines from the initial monolayer corrugated sheet pressing production line, such as slitting line production line, series hidden gripping wall roof plate production line, series colorbond sandwiched steel plate production line, series C-type steel and Z-type steel numerical control tape punching and purlin production line, series floor steel bearing plate production line, PU load board production line, series arch roof with or without beam and series production equipment, fully meeting requirements of all steel buildings.
Our company has strong technical strength, high-level management personnel, strong production capacity and complete quality tracking and detection. We have passed the certification of ISO9001: 2000 Quality Management System, and the quality management during production strictly executes 9001 standard. The company has ranked among the industry in China, our users spread all over China and our products are exported to many countries and regions in Southeast Asia, South Africa, America, etc. We have established good cooperative relationship with many manufacturers and distributors, forming wide product marketing channels.
Wuxi Jing Jia International Trade Co., Ltd. will give play to its advantages of technology, market channel and market development capacity to provide professional and excellent service for manufacturers and users at home and abroad.
