Not only does have the convenientme chanization, but also the high speed and accuracy resulted from servo motion system.
1. Servo motion system and servo drive controlled
2. 5.7'control panel, easy to operate
3. Cam can be moved clockwise or anti-clockwise; Wire feed length con be changde while running the macheine
4. Computer can automatically detect the temparua of of the motor and slow down the running speed to protect the motor from overheating
5. Computer can automatically deceleate according to the timing when the probe should be used
6. Production speed con be increased or decreased atan time running the machine

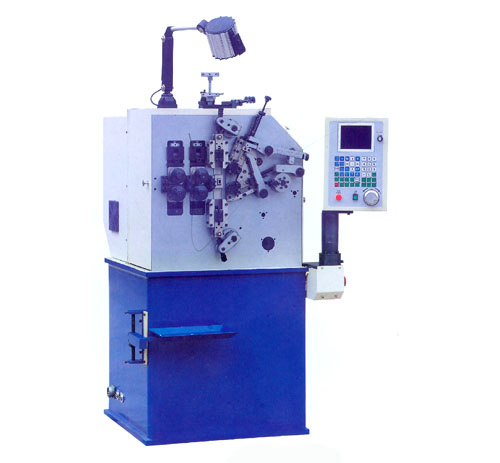

Model JD-216
Wire Diameter
0.5~2.0mm
Max. O. D 45m
Max. Production Speed 300pcs/min
Feed Length unlimited
Feed Speed 155m/min
Feed(Y) Axis(kw) 3.5kw
Cam(X) Axis(kw) 2.0kw
Monitor Display Color/Chinese/English
Max. Value X: 359.9 Y: 9999.9mm
Min. Value X: 0.1 Y: 0.01mm
Memory 150 Programs Max. 999Lines for each program
Machine Dimensions 110X110X160cm
Wooden Case Dimensions 120X120X175cm
Machine Weights 800kg
Gross Weights 850kgs
Power 200v 3p 50/60Hz
We export all kinds of CNC Spring Making Machines. Our products are of good quality and competitive price. Any more information please feel free to contact us.
