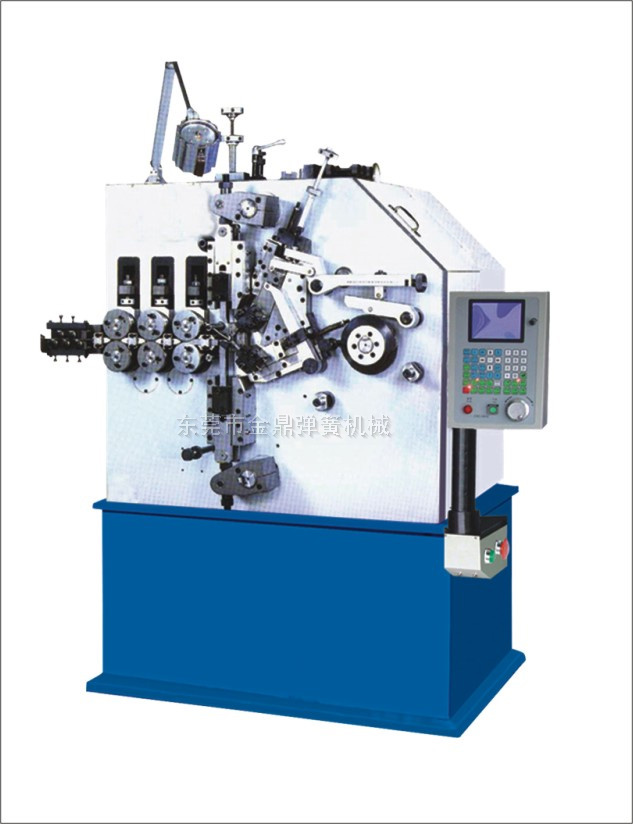

Not only does have the convenientme chanization, but also the high speed and accuracy resulted from servo motion system.
1. Servo motion system and servo drive controlled
2. 5.7'control panel, easy to operate
3. Cam can be moved clockwise or anti-clockwise; Wire feed length con be changde while running the macheine
4. Computer can automatically detect the temparua of of the motor and slow down the running speed to protect the motor from overheating
5. Computer can automatically deceleate according to the timing when the probe should be used
6. Production speed con be increased or decreased atan time running the machine
Model JD-240 JD-250
Wire Diameter
1.5~4.0mm 2.0~5.0mm
Max. O. D 70mm 80mm
Max. Production Speed 150pcs/min 100pcs/min
Feed Length unlimited unlimited
Feed Speed 80m/min 54m. Min
Feed(Y) Axis(kw) 5.5kw 7m0kw
Cam(X) Axis(kw) 4.5kw 7.0kw
Monitor Display Color/Chinese/English Color/Chinese/English
Max. Value X: 359.9 Y9999.9mm X: 359.9 Y9999.9mm
Min. Value X: 0.1 Y0.01mm X: 0.1 Y0.01mm
Memory 999 Programs Max. 150Lines for each program 150 Programs Max. 999Lines for each program
Machine Dimensions 160X120X180cm 200X130X200cm
Wooden Case Dimensions 170X130X200cm 224X182X224cm
Machine Weights 1600kgs 2450kgs
Gross Weights 1700kgs 2796kgs
Power 200v 3p 50/60Hz 200v 3p 50/60Hz
We export all kinds of CNC Spring Making Machines. Our products are of good quality and competitive price. Any more information please feel free to contact us.
